PRO NMEA 0183 Multiplexer

Eight OPTO-isolated inputs and six ISO-Drive™isolated outputs. Offering device protection and excellent flexibility, all in one product.

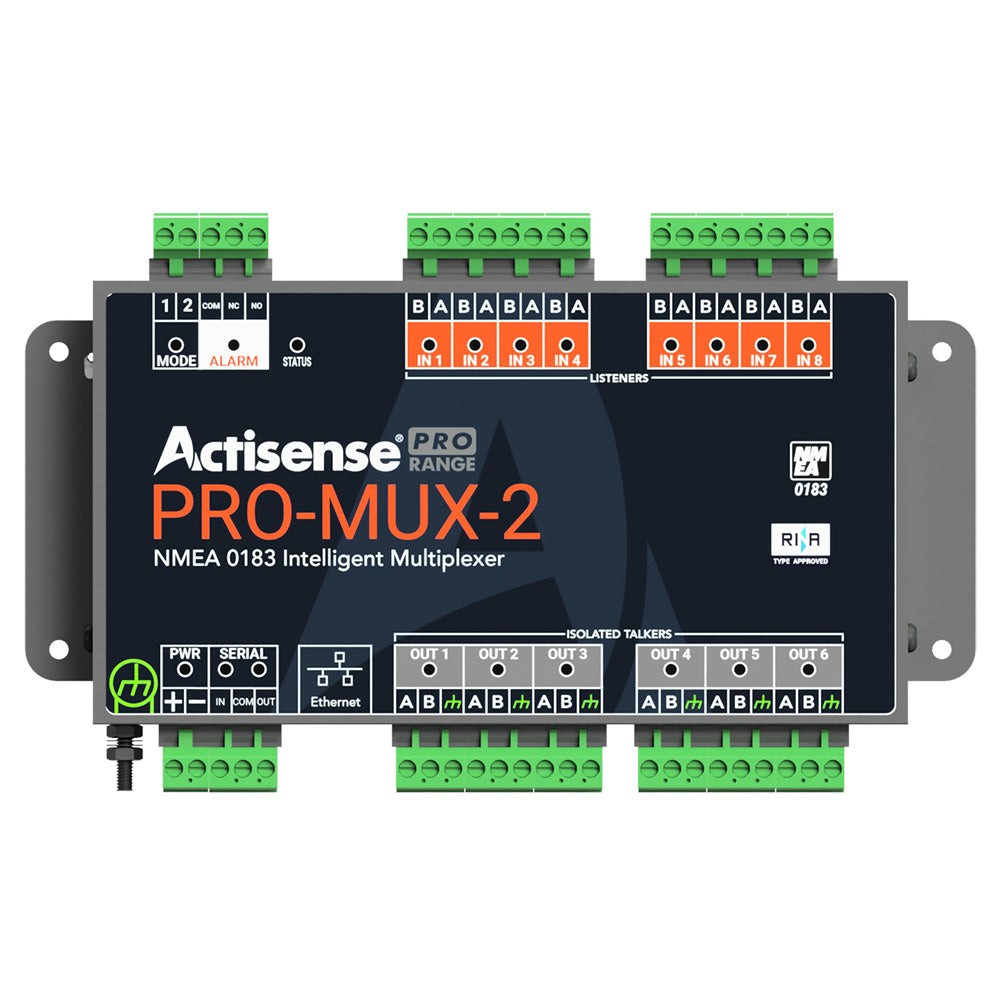

Introducing the Actisense® PRO-MUX-2, the intelligent, type-approved PRO range multiplexer.

The PRO-MUX-2 is rugged, with a stainless steel housing, and provides isolation on all inputs and outputs. With eight NMEA 0183 inputs, six NMEA 0183 outputs, a bi-directional serial port and an Ethernet port, the PRO-MUX-2 is a perfect solution for larger leisure vessels, commercial shipping and is a great addition for systems that require type-approved devices.

The PRO-MUX-2 is designed to suit the majority of NMEA 0183 systems, from leisure through to class vessels.

Features:

8 OPTO-isolated NMEA 0183 inputs
- 6 ISO-Drive NMEA 0183 outputs
- Bi-directional isolated serial port (can be used for additional NMEA 0183 input/ output)
- 0183 streaming via Ethernet
- Alarm output (N/O and N/C contacts)
- Designed for 12- and 24-Volt supply
- Isolation to battery supply
- Configurable input and output baud rates for rate conversion
- Data combining from any input to any output
- 2 independent Autoswitch virtual inputs with priority
- Advanced sentence-based filtering / routing
- Diagnostic LEDs on all inputs and outputs
- Alarm, mode and Bi-colour Status LED’s
- 2-part pluggable connector system supports both screw and screwless terminals
- DIN rail or Panel mountable
- Advanced statistics are available via a Web Browser
Quick and easy to install
Configuration using standard web browser, no PC operating system compatibility issues
Advanced features solve NMEA 0183 data routing problems
Fully isolated with ISO-Drive technology for peace of mind
Easy firmware updates makes the device future-proof

Technical Specifications:

Power Supply

Input Supply Voltage - 9 to 35 V DC
Input Supply Current - 220mA max @ 12V DC (all outputs @ full drive into 100 ohm loads)
Input Protection - Continuous reverse polarity, transient overvoltage and ESD protection
Power Indicator - LED, Blue – indicates unit is functioning correctly
Input Supply Connector - Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG)

NMEA 0183 Port – Listener & Talker

Number of Listener / Input Ports - 8 isolated NMEA 0183 Listeners
Number of Talker / Output Ports - 6 isolated NMEA 0183 Talkers
Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible
Speed / baud rate - 4800 to 38400 bps
Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm
Talker Output Current Drive - 20 mA maximum per output
Talker Output Protection - Short circuit and ESD
Talker Data Indicator - LED, Orange (Flashes at data rate)
Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
Listener Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection
Listener Data Indicator - LED, Green (Flashes to indicate valid input)
Connectors - Pluggable 2/3-way screw terminals, 5.08mm pitch (12 to 30 AWG)

Serial Port

Compatibility - RS422 & RS232 compatible. RS485 Listener compatible
Speed / baud rate - 4800 to 115200 bps
Output Voltage Drive - >= 2.1V (differential) into 100 ohm
Output Current Drive - 20 mA max.
Output Protection - Short circuit and ESD
Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection
Data Indicators - LED’s: Green = Receive, Orange = Transmit
Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG)

Ethernet Port

Host Interface - 10/100BaseT, automatic polarity detection
Supported Protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms
Indicators - Green = Link/Activity, Yellow = 100 Mbps
Connector - RJ45

Isolation
