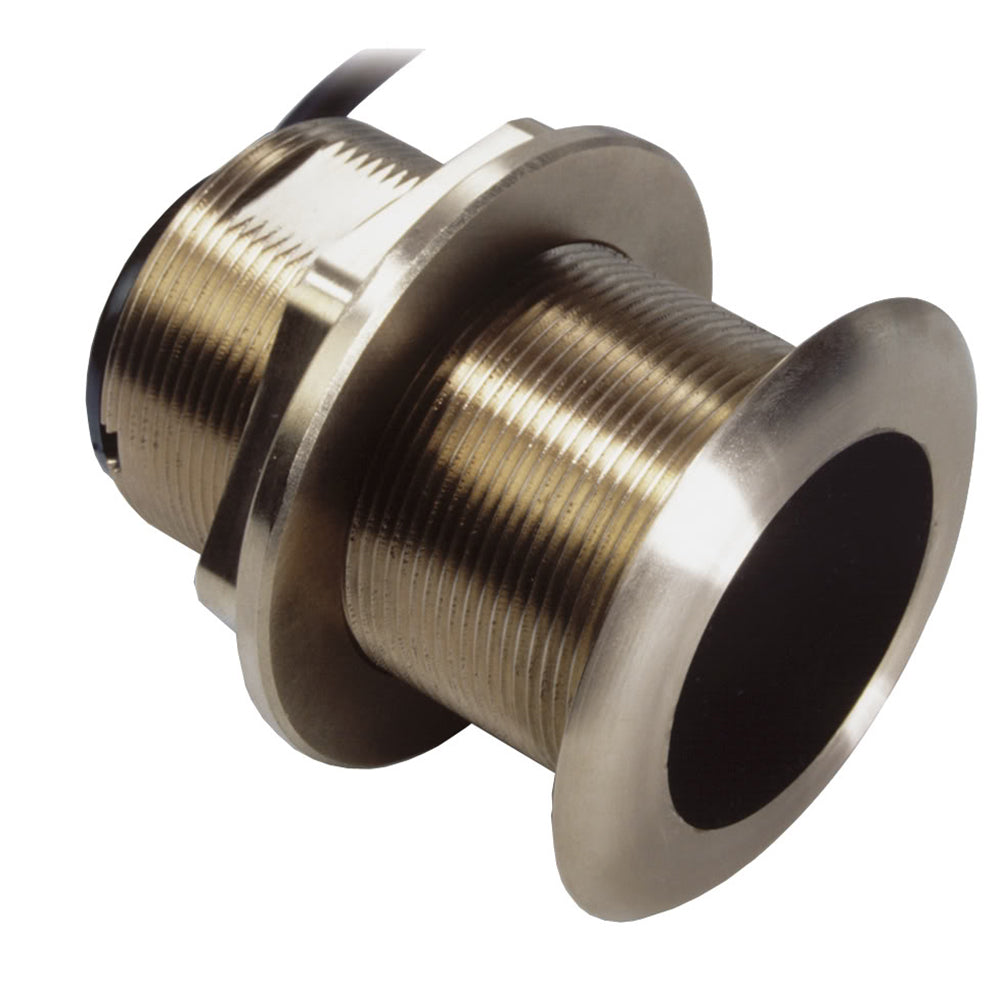

B60 Bronze Thru-Hull Transducer w/Humminbird #9 Plug - 7-Pin - 12º

The bronze B60-12º provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted for built-in, deadrise compensation. The resulting vertical beam gives excellent echo returns for more-accurate depth readings. The nearly-flush housing minimizes drag with only 5mm (3/16") extending outside of the hull.

Features:

• Engineered for center-console and trailered boats

• Low-profile protrusion below the hull
• No affect on your boats running performance
• Arrow on cap points toward keel when installed
• Built-in temperature sensor
• Boat Size: Up to 8M (25')
• Bronze transducer housing

Specifications:

• Weight: 1.4 kg (3 lb)

• Hull Deadrise: Up to 24°
• Acoustic Window: Urethane

Specifications:

• Temperature: Yes
• Mounting Style: Thru-Hull
• Pins: 7
• Box Dimensions: 1"H x 5"W x 8"L WT: 3.4 lbs
