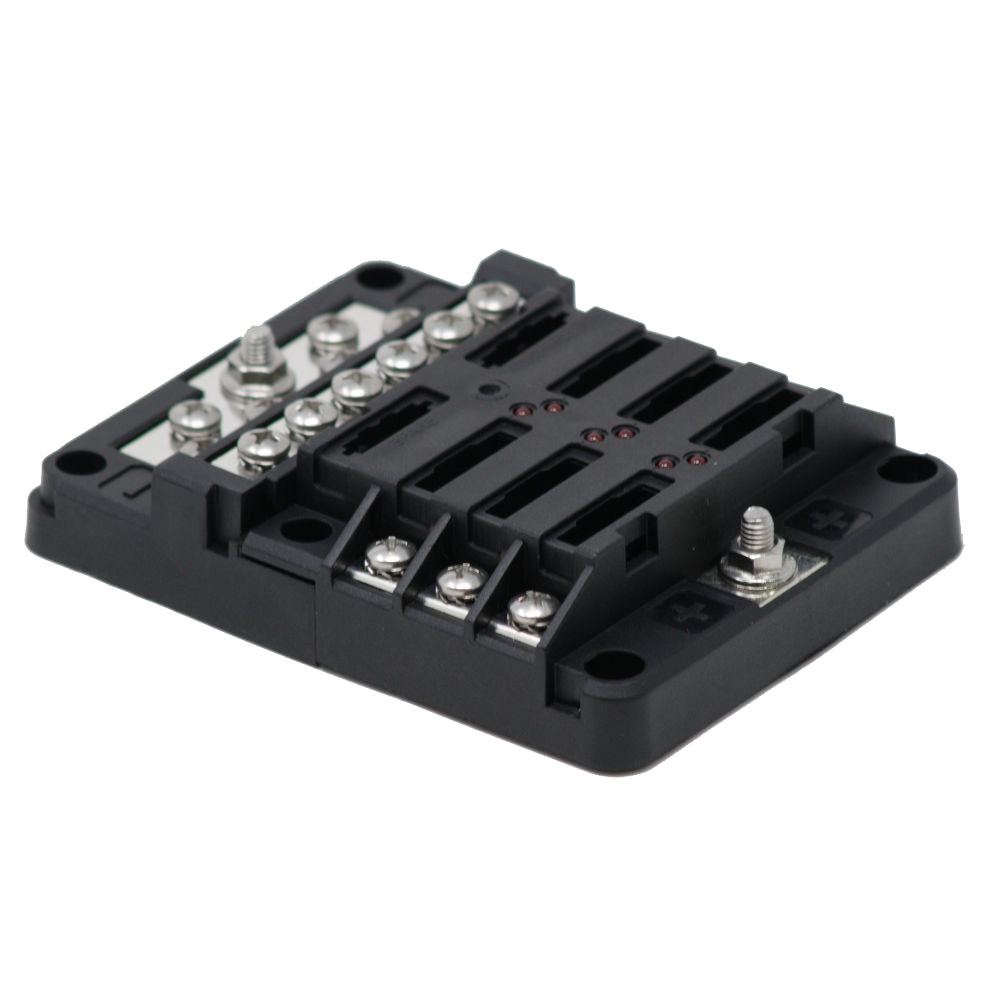

RT Fuse Block 6 Position with Ground & LED Indication

This 6-position fuse block has a modular design that can produce seven (7) unique configurations from Egis 8028 & 8030 and reduce part numbers to stock for all build requirements. Also, this fuse block has a ground and LED indication.

Applications:

Blown fuse LEDs speed up the correction of system faults and improve the ability to remotely diagnose customer issues.
Harsh environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options.

Features:

Bullet-proof construction - designed with high-temperature materials and stainless steel self-locking hardware allows mounting anywhere on the vehicle
Protects branch circuits by accepting ATO style fuses ranging from 1 through 40 Amps
Supports SAE circuit protection standards for thermal/short circuit events

Specifications:

Maximum Current (Entire Block) Amps: 100
Maximum Current (Per Circuit) Amps: 30
Max Output Wire Size: #10 AWG
Voltage Range VDC: 0-36
Number of Fuse Positions: 6
Compatible Fuse Types: ATO / ATC / ATF

Focal Features:

Spare Fuse Locations

Two locations per 6 circuits for spare or test resistors to reduce siren volumes during evaluation.

Stainless Steel Self-Locking Hardware

100 % non-ferrous corrosion-resistant materials. All attachment screws and nuts are self-locking.

LED Fuse Diagnostics

Blown fuse LED indication for each output circuit provides a clear indication of faulty circuits and eases troubleshooting issues remotely.

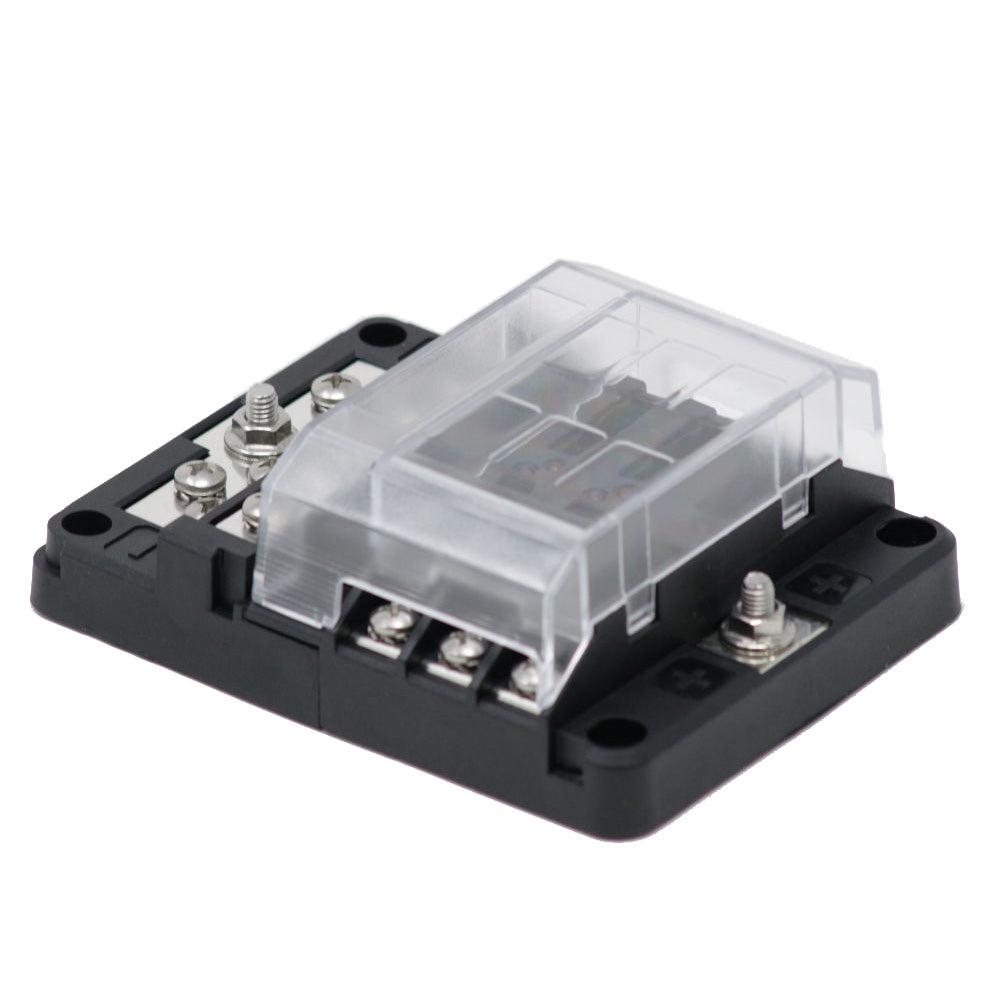

Cover/ Label Recesses

Protects terminal studs and cable terminal edges from inadvertent shorts to each other or ground.

Ground Block Included

Includes a 12-position ground return block with multi-level low amp terminal screws for improved mounting.

Ground Block Separates

The ground block section optionally separates from the fuse block section, affording increased deployment options for challenging installations.
