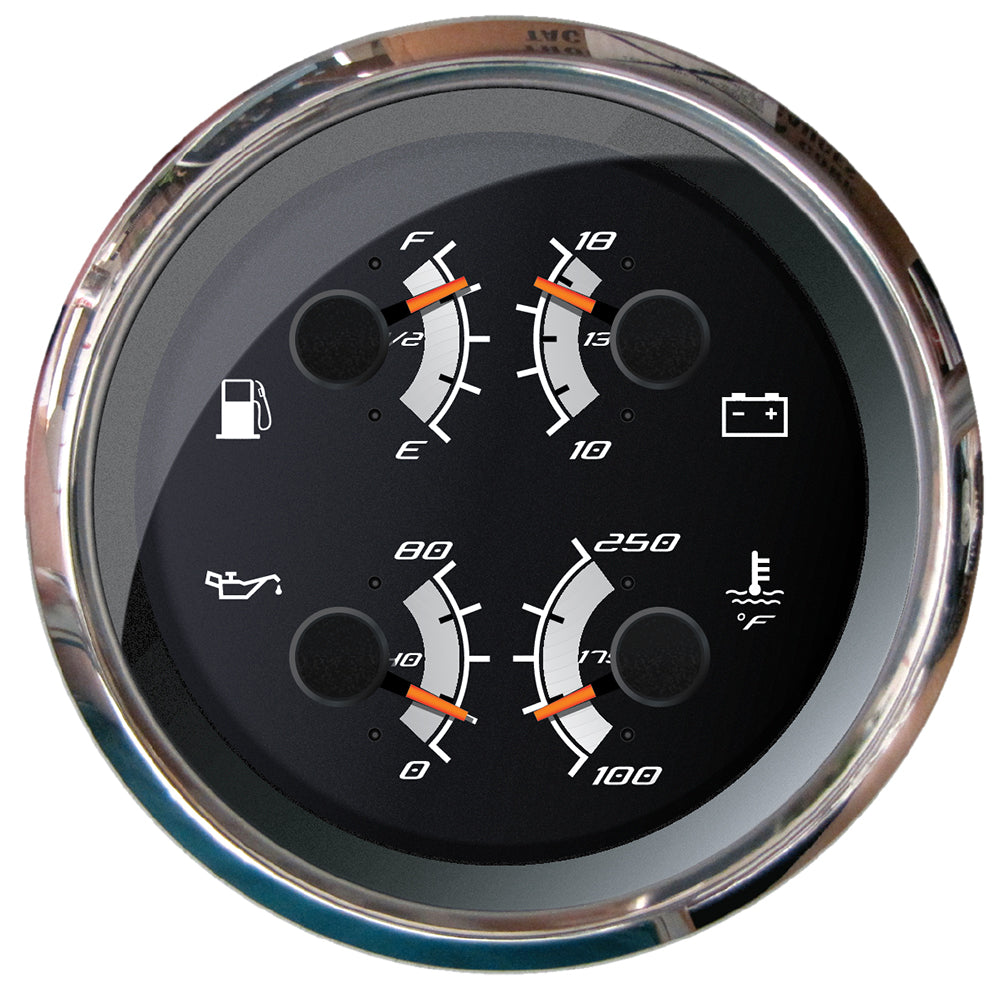

Platinum 4" Multi-Function - Fuel, Oil, Volt & Water Temperature

Faria Beede’s Platinum Series Instruments feature spun aluminum gauge dials with custom graphics and a polished stainless steel bezel providing a rugged, elegant look.

All Platinum Series gauges feature Faria's revolutionary domed glass Fog-Resistant lens. These lenses shed condensation and resists scratching and other types of fouling common in the marine environment.

Multi-Function Gauge Displays:

• Fuel (E-1/2-F)
• Voltmeter (10 - 18 VDC)
• Oil Pressure (0 - 80 PSI)
• Water Temperature (100 - 250° F)

4" - Hole size: 3.375" (85mm)

Specifications:

• Domed Glass Anti-fog, Scratch Resistant Lens
• Stainless Steel Bezel
• Blue LED Illuminating around the Perimeter of the Dial
• Illuminated Backlit Fire-Orange Tip Pointer

Factory P/N GF0417

*Sold as an Individual

*Gauge Cover not Included

Specifications:

• Voltage - Input Range (Volts): 12/24 V
• Series: Platinum
• Gauge Type: Multifunction
• Gauge Size: 4"
• Box Set: No
• Box Dimensions: 5"H x 6"W x 6"L WT: 0.65 lbs
• UPC: 759266220140
