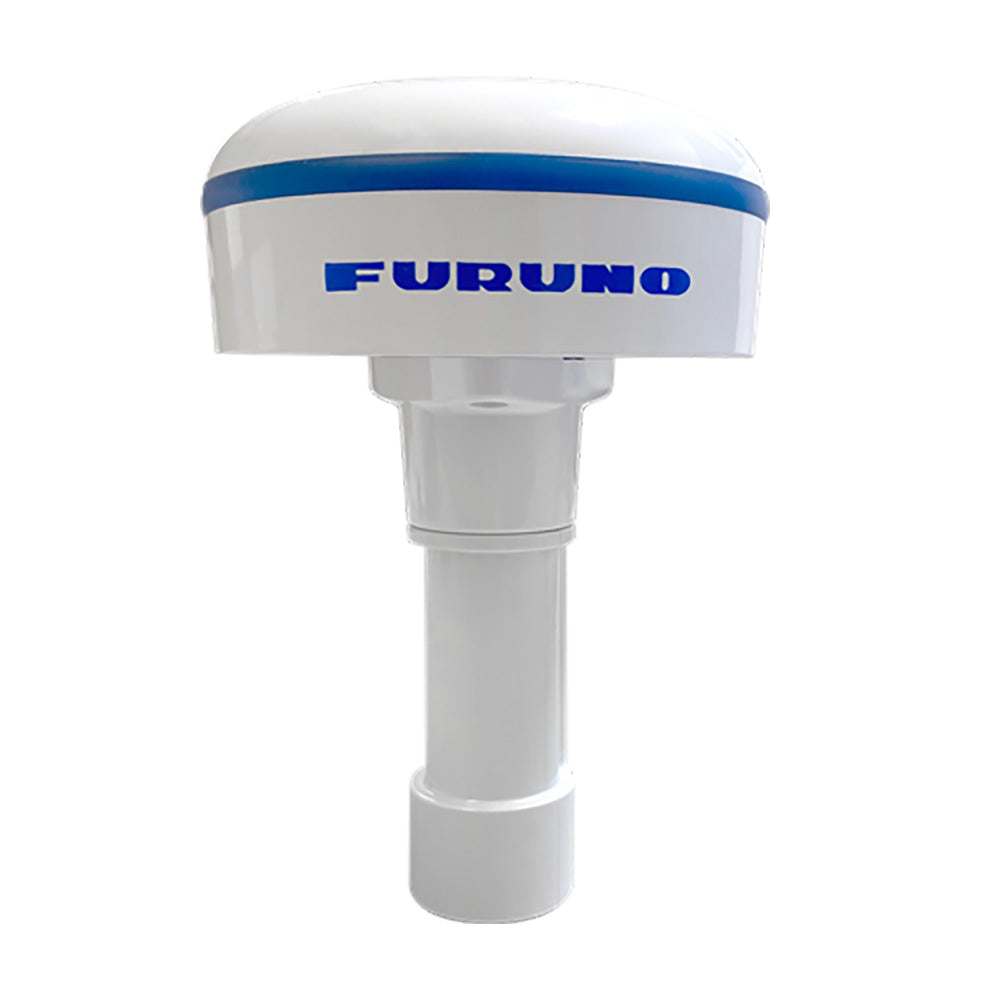

GP340 GNSS GPS Receiver

Compact, Versatile & Accurate Positioning

The GP340 is a high-performance GNSS Receiver designed for any type of vessel. Equipped with a powerful 75-channel GNSS core, this compact and cost-effective receiver offers extremely accurate position fixes within 3 meters. The GP340 features a 10 Hz refresh rate and is capable of data output in either NMEA2000 or NMEA0183* formats, making it an ideal GPS sensor for use with NavNet or countless other systems that rely on high-precision GPS information for demanding maritime, industrial, and survey applications.

The GP340 Supports:

• GPS (L1/L5)
• GLONASS (L1)
• Galileo (E1/E5)
• QZSS (L1/L5)
• Beidou (B1/B2)

The GP340 supports SBAS, including WAAS, EGNOS, MSAS, and GAGAN. The sensor comes with all of the hardware required for deck- or mast-mounting solutions, and a 6-meter cable with NMEA2000 connector is supplied as standard. An optional NMEA0183 cable is also available.

Specifications:

• Data Type: NMEA0183 or NMEA2000
• Power Usage: 12-24 VDC
• Receiver Type: GPS or GLONASS or QZSS or SBAS or WAAS or Galileo or WAAS-GPS

*NMEA0183 requires optional cable
