Fusion Apollo Monoblock Marine 650Watt RMS Amplifier 0100228415

SALE

Fusion

Fusion Apollo Monoblock Marine 650-Watt RMS Amplifier [010-02284-15]

$749.00

$0.00

(120)

Shipment.png__PID:1566375f-ddd7-4ae7-946e-2503b97fe25e

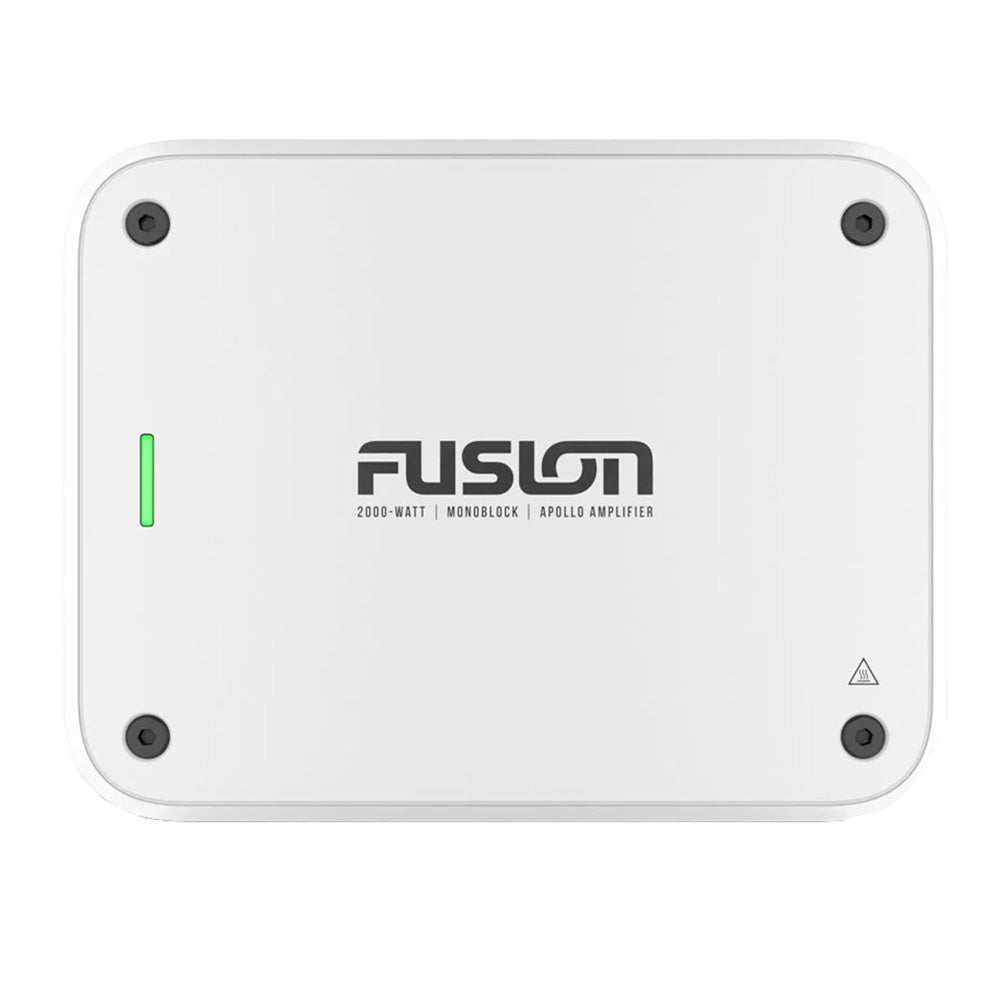

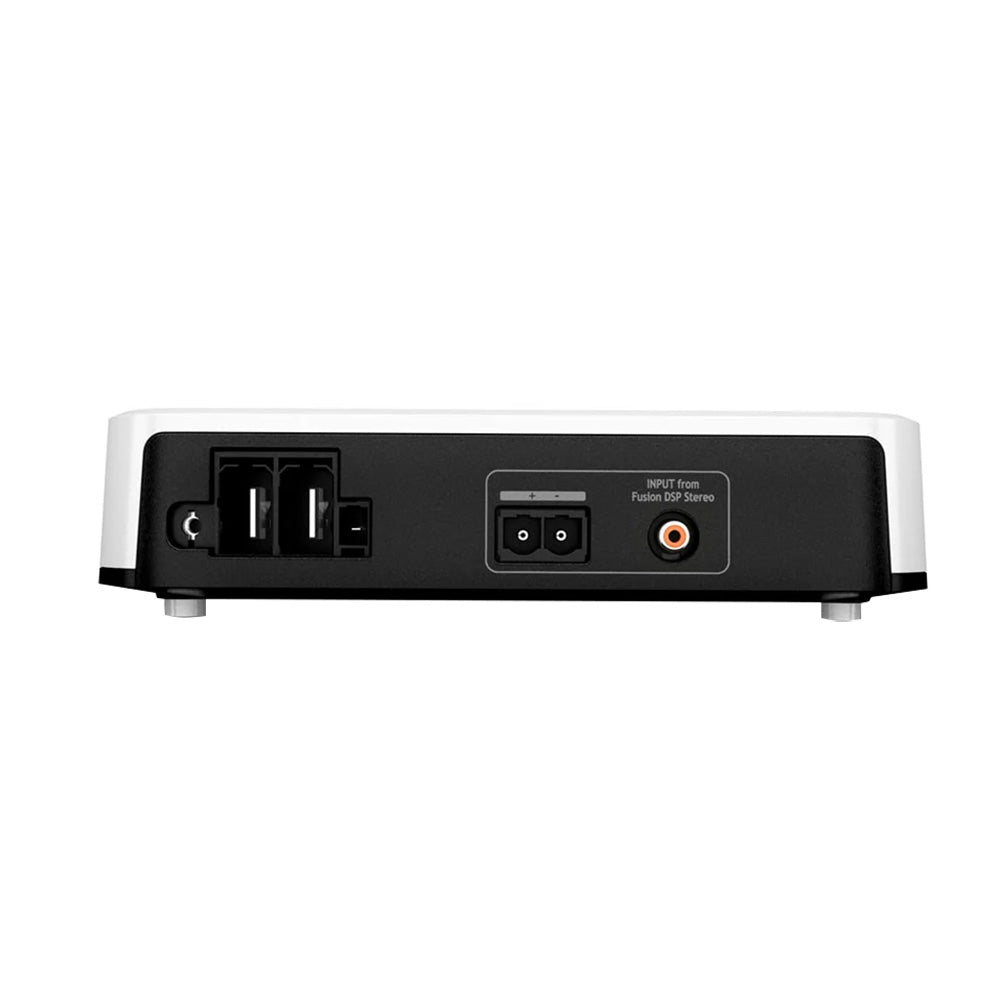

Apollo Monoblock Marine 650-Watt RMS Amplifier

Add extra power to a system with this 2000-watt (650-watt RMS) monoblock amplifier that’s specifically designed to power a subwoofer. This efficient, easy-to-install monoblock amplifier works with your compatible Fusion stereo system.

Features:

Keep the music going for longer without draining your battery as quickly
No more manual adjustments to your audio settings. The Easy Tune feature does it for you
A glance at the LED indicators lets you identify if the amplifiers have a short or if they’re overheating
Less distortion and noise, so you enjoy quality audio
Mounting brackets are included for simple installation
Don’t worry about potential overheating damage with our ignition protection design

Power & Efficiency

The Apollo amplifiers are designed to produce impressive power with less drain on your battery. The monoblock produces 650-watt RMS.

Easy Tune Feature

These amplifiers use the Easy Tune feature, which automatically regulates audio settings. So, users can get the best quality sound without making manual adjustments.

Less Distortion

Some amplifiers distort audio when they add power. Fusions are specifically designed with minimal distortion and noise, so you can enjoy high-quality audio, even at higher volumes.

LED Indicators

Identify electrical issues at a glance. These indicator lights will show you issues with electrical currents and shorts, as well as temperature.

Mounting Brackets

Easily install the amplifiers on board with the included mounting brackets.

Ignition Protected

The ignition-protected design helps prevent potential damage from overheating.

Conformal-Coated PCBS

The amplifier’s circuit board has been specially coated to provide extra protection from the marine elements.

2 OHM Stable

Connect up to two speakers per channel, increasing setup options.

Fusion True-Marine Design

The amplifier is designed to last season after season. They have been tested to a high level of protection against salt fog, temperature, vibration, and UV.

In the Box:

One Apollo monoblock amplifier
One mounting bracket
One power connector
One speaker connector
Four 8-gauge, flat-head self-tapping screws
Four 8-gauge, pan-head self-tapping screws (for mounting bracket)
Four screw covers
Fuse holder
Mounting template
Installation instructions
Important safety and product information (ISPI)

Specifications:

Physical Dimensions without Bracket (L x W x H): 9.25" x 7.06" x 1.75" (235 x 180 x 45 mm)
Physical Dimensions with Bracket (L x W x H): 9.25" x 7.06" x 2.13" (235 x 180 x 50 mm)
Weight: 4.85 lb (2.2 kg)
Water Rating: IPX2
Amplifier Class: Class-D
CEA-2006 Power Rating: 650 watts RMS x 1 @ 14.4 V input, 4 ohms, < 1% THD
Total Rated Power Output, 2 Ohm (Watts): 1100 watts RMS x 1 @ 14.4 V input, 2 ohm < 1% THD
Peak Power (watts): 2000 watts
Input Sensitivity: 2.15 V RMS
Input Impedance: 22k ohm
Operating Voltage: 10.8 V - 16 V DC
Current Draw, in Standby/off Using Amplifier on Wire: < 5 mA @ 14.4 V input
Current Draw, On, No Audio: < 1.15 A @ 14.4 V input
Fuse Rating: 125 A electronic fuse (no replacement necessary)
Power-Cable Fuse Model and Rating: Bussmann™ BK/AMI-030 30 A fast-acting
Ignition Safety Protected (SAE J1171): Yes
Protection Circuits: Reverse voltage, input under/over voltage, over temperature, and output short circuit
Operating temperature range: 32° to 122° F (0° to 50° C)
Warranty: 3 years
