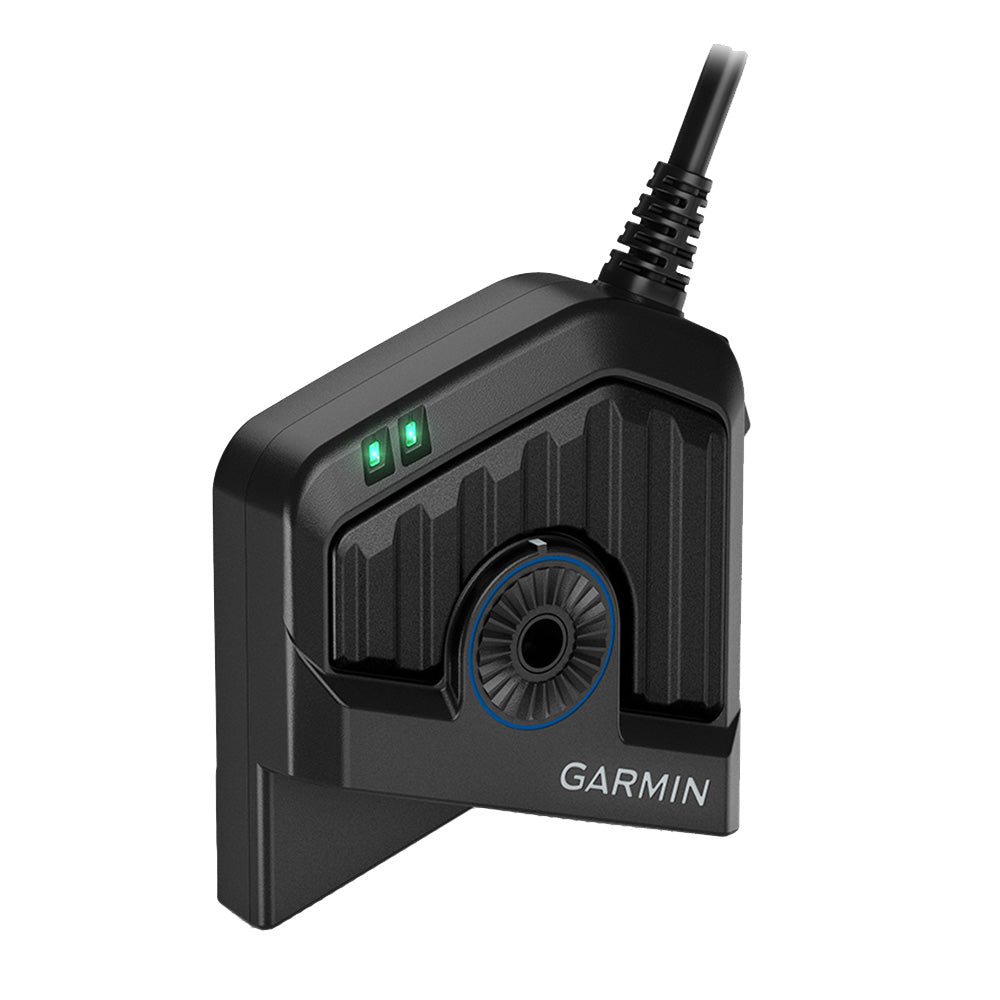

LiveScope™ 2 HD Transducer - LVS42HD

OUR CLEAREST SONAR EVER

See fish and lures in real time in high definition like never before with LiveScope 2 HD sonar. With ultra-high resolution, integrated image stabilization and improved stitching, your images are cleaner and crisper.

• Ultra High-Definition imagery with better target seperation
• No black box needed, so install is easy
• See highly detailed imagery at castable range and bottom track out to 125 feet
• Sonar automatically turns off when the transducer is out of the water
• Wider angles in forward, down and perspective modes

Our Clearest Sonar

See fish and lures near the boat in up to 50% more detail and 20% higher resolution with reduced sonar artifacts and smoother images compared to previous generations. Plus, bottom track out to 125 feet in freshwater.

No Black Box

The LiveScope 2 HD transducer connects directly to your compatible chartplotter and power source — making installation easy because there’s no black box.

Fast Processing

Enjoy fast processing speeds so you can see fish react in real time and know when to set the hook.

Integrated Sonsors

Water detection automatically turns off your sonar when the transducer is out of the water. And while it’s in the water, the temperature sensor provides readings.

Improved Coverage

Wider sonar angles offer better coverage in Forward, Down and Perspective modes. The adjustable Perspective Mode Mount is included.

Vivid Color Palettes

When LiveScope 2 HD is paired with your compatible chartplotter, you can choose from more than 15 vivid color options to enhance detail and clarity.

Take Control of Your View

• Spy Pole™ Mount: Attach your transducer to your Spy Pole mount to get wireless sonar control independent of your trolling motor.
• OneVü™ Sonar: Combine LiveScope 2 HD with GT360UHD to overlay your live sonar onto the 360-degree image for an all-new 3D view.
• Forward Mode: Scout ahead of your boat to see what’s happening in real time with more coverage.
• Down Mode: Explore a wider live view of the activity directly beneath your boat.
• Perspective Mode: Get an overhead wider-angle perspective of what’s below and around your boat.

In The Box

• LiveScope 2 LVS42HD transducer
• Adjustable perspective shaft mount for LiveScope 2 transducers
• Trolling motor barrel mount
• Power/network cable with adapter
• Adapter disc for the Force® Kraken trolling motor LiveScope transducer mount
• Hardware
• Documentation

Specifications

General

• Transducer Beamwidth: Forward: 20° x 165°, Down, Perspective: 20° x 180°
• Transducer Cable Length: 5.5m (18 ft)
• Transducer Number of Pins: 7
• Dimensions: 5.2" x 5.3" x 1.9"
• Weight: 3.62 lbs
• Temperature Range: Operating: 0 C to 40 C

Electrical Features:

• Power Input: 10-35v
• Power Usage: 32w max
• Fuse: 7.5 A
• Compass-Safe Distance: 4"

Sonar Features:

• Frequency: 850 kHz - 1600 kHz
• Transmit Power: 521 W
• Maximum Depth: Down and Forward: 125'
• Sonar Type: Live
• Target Seperation @ 100': 12.6"
• Target Seperation @ 30': 3.8"
• Perspective Mode Mount Included: yes (adjustable angles)
• Water Detection Transmit Control: Yes

Networking & Connections

• Garmin Marine Network Ports: 1 BlueNet (small connector) with GMN1 Adapter
• Power Connection: Yes (2-Wire)

Specifications:

• Cable Length (Feet): 18'
• Pins: 7
• Speed Included: No
• Temperature: No
