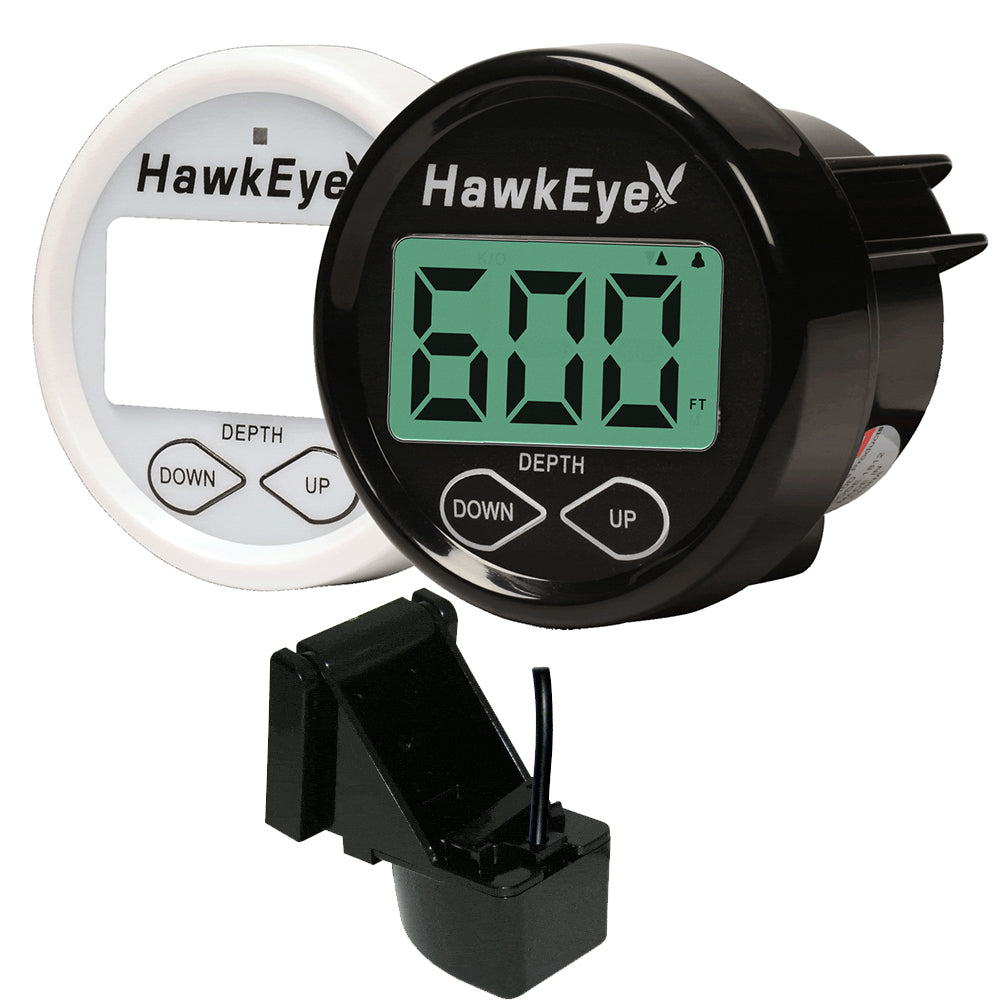

DepthTrax In-Dash Digital Depth & Temp Gauge - Transom Mount

The DepthTrax 2BX includes all the advanced sonar, depth alarm, and keel offset capabilities of the DepthTrax 2B, but also integrates dual temperature displays and an AIRMAR®, ultra-sensitive, high-performance transom mount transducer.  With a simple press of a button on the DepthTrax 2BX display produces instant access to water or air temperature readings via integrated sensors in both the head unit and the transducer.

The DepthTrax 2BX delivers a combination of performance and affordability unrivaled in any other depth sounder.

Features:

• Algorithmic programming significantly reduces false readings and produces unmatched precision
• EasyTouch programming allows one-touch access to the user settings
• User programmable keel offset automatically adjusts depth readings for vessels’ draft requirements
• Selectable Imperial or Metric readout
• Dual Upper and Lower depth alarms can be set throughout the full depth range
• 3-Stage Advanced Warning System™ clearly signals an alarm condition with an audible alarm, LED and LCD indicators with one-touch alarm muting
• Displays air & water temperature in °F or °C
• Automatic memory retention of all user settings
• Removable face system - includes White & Black faceplates and White/Black trim rings
• No glare, polarized LCD icon display with storage sun cover
• SoftGlow™ backlit display and programming keys - low intensity, low temperature lighting prevents eye strain and condensation while providing unparalleled nighttime viewing

Technical Specifications:

• Gauge Dimensions (Diameter x Depth) - 2" x 1.75" (51 x 45mm)
• Screen Dimensions (Height x Width) - 1.65" x .87" (42 x 22mm)
• Gauge Cut-out Size - 2"
• Operating Temperature - 0 to 160° F (-18 to 71°C)
• Depth Range - 2.5' to 600' (.7 to 180 M)
• Transducer Type - Transom Mount
• Transducer Frequency - 200kHz
• Transducer Beam Angle - 14°
• Transducer Cable Length - 30' (9 M)
• Power Requirement - 12 - 14 VDC

In the Box:

• Gauge
• Bezel/Faceplate - Black and White
• Display cover
• Mounting hardware
• Transducer - transom mount w/30' cable
• Instruction manual

*Sold as an Individual

Specifications:

• Box Set: No
• Gauge Size: 2"
• Gauge Type: Depth Sounder
• Voltage - Input Range (Volts): 12 - 14
• Box Dimensions: 4"H x 7"W x 7"L WT: 2.4 lbs
• UPC: 818800103919
