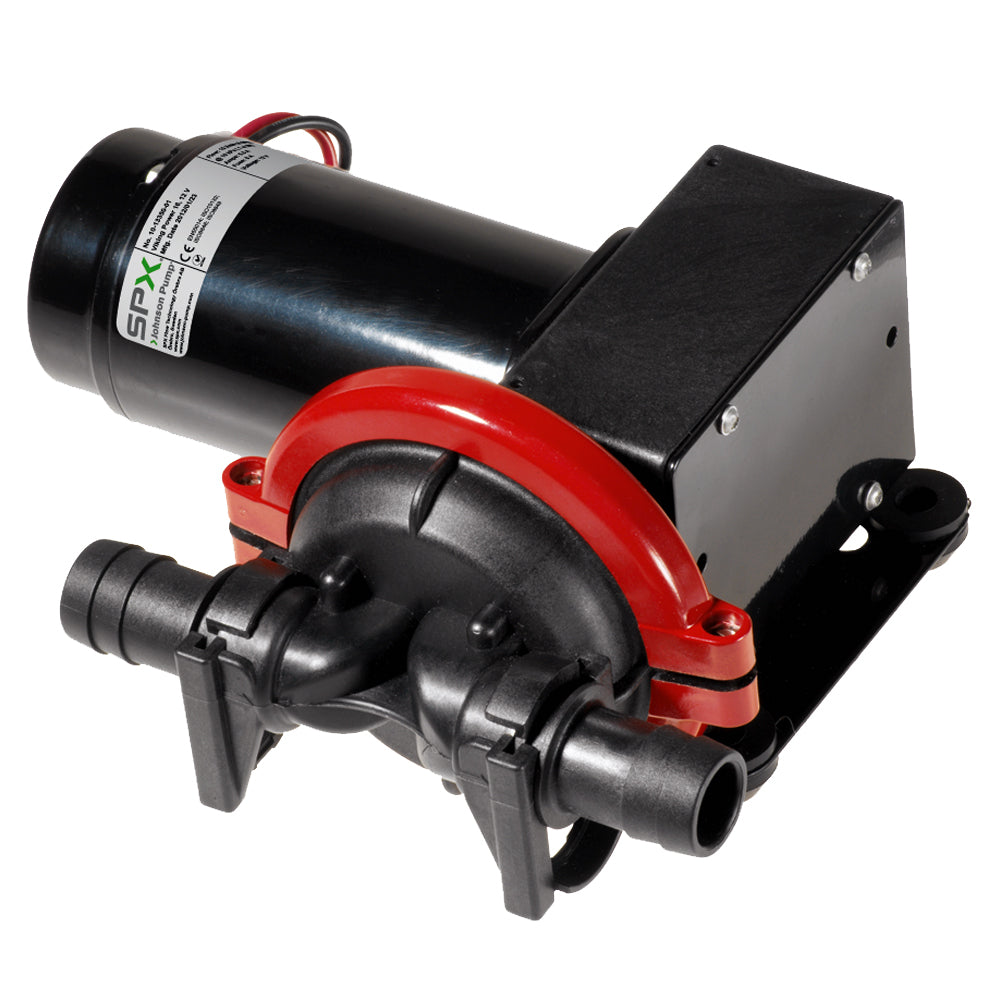

Viking Power 16 - 24V
A modern, single-chamber, self-priming diaphragm pump that can be set up in several different pump/motor configurations. It is easy to install anywhere after the drain outlet in the wastewater system or as a bilge pump in any leisure craft - new or used.
Its non-choke valves mean that no in-line filters are necessary. The pump can be run dry, and it can also handle a mixture of air and water without difficulty. The Viking Power 16 is self-priming up to a height of 3 meters.
With its low pulse and muffled rubber bracket, this pump offers quiet operation. Specifically designed to pump waste water, the Viking Power 16 has been built to last, and engineered for easy maintenance. When it comes time to replace the premium grade reinforced nitrile rubber diaphragm, you can put in a spare without even removing the pump from the system. Delivered with 1" hose and 3/4" hose 1/2" BSP KlickTite™ XL connectors. 90° KlickTite™ XL connectors available as extra accessory.
Capacity, Open Flow:16 l/min - 4.2 GPM
Capacity at 0.1 bar: 15 l/min - 4.0 GPM
Max Lift:3M - 9.8'
Max Head:3M - 9.8'
Connection: KlickTite™ XL connectors for 1" hose or 3/4" hose and 1/2" BSP threads; straight and 90°(optional)
Specifications:
- Gallons Per Minute: 4.2 GPM
- Volts: 24v
- Type: Waste Pumps
- Box Dimensions: 5"H x 8"W x 10"L WT: 5 lbs
- UPC: 7330717009014
