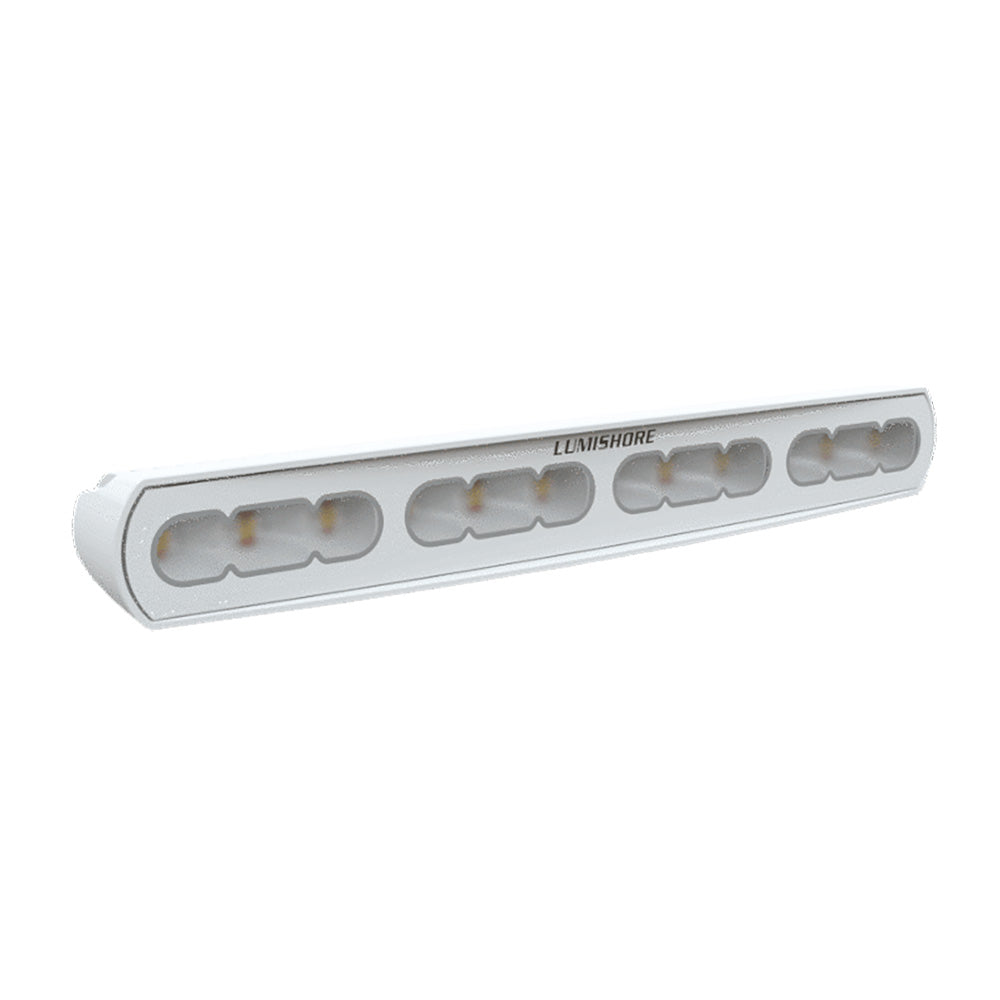

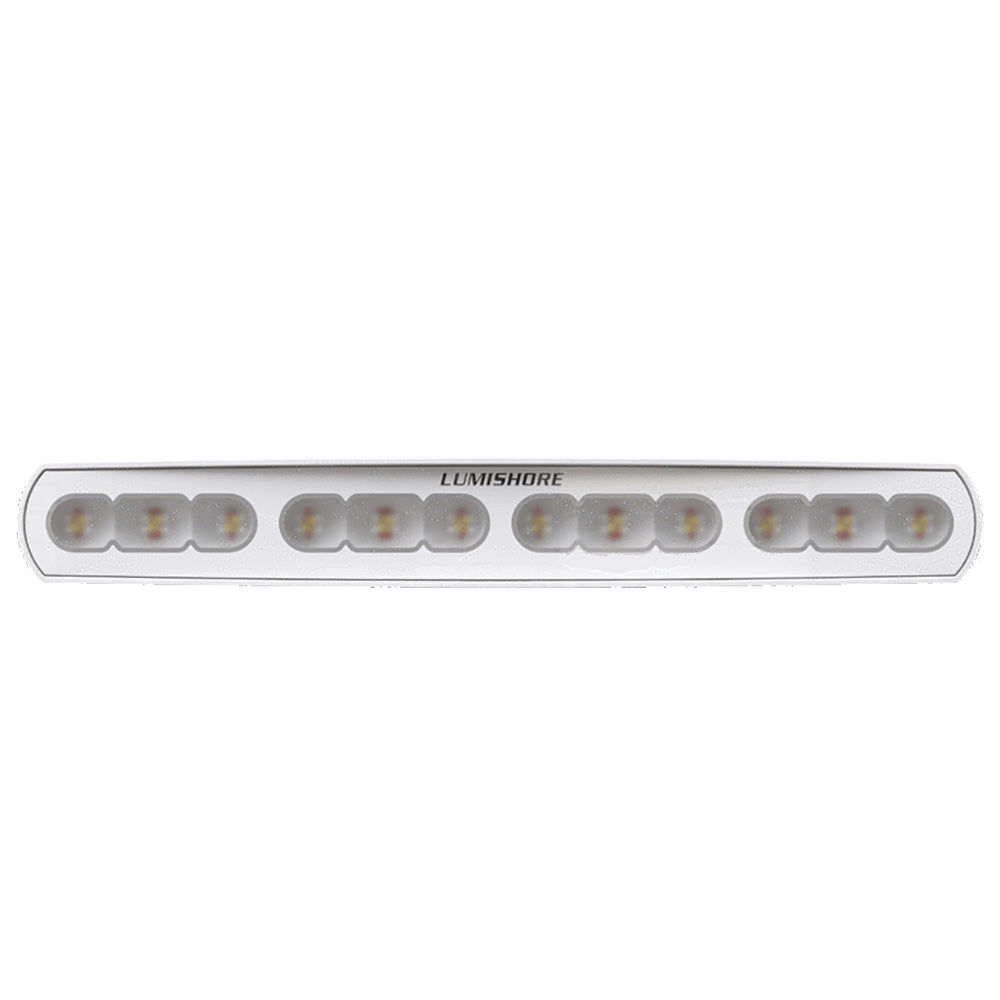

LUX 18" Flood Light

The world’s first CRGBW Flood Lights are designed to offer a high-intensity light source onboard. Perfect for deck, cockpit lighting, or for general security purposes.

Lumishore's 18" (40cm) Flood Light has an ultra-wide reaching (70° - 90°) oval beam angle for full coverage and custom diffusion optics for consistent and smooth beam colors. Generating a powerful 7,500 fixture lumens to illuminate your boat deck and beyond.

With its unique capability to combine warm and cold white (as well as red, green, and blue) in a single lighting unit, LUX Flood Lights are unlike anything else on the market.

Lumishore’s low-profile articulating Flood Lights are ideal for exterior mounting on cabin tops, T-tops, arches, transoms, and radar pedestals.

Designed to withstand the harshest marine environments, with an IP68 rating, and in marine-grade powder-coated aluminium housing. The lighting units themselves are beautifully built, enhancing your boat’s fit-out, even when not in use.

Easily controllable by a switch, with the option to upgrade to full integration with your compatible MFD and/or Lumishore Display.

Dimmable control as standard.

Specifications:

• Lumens: 16,875
• Fixture Lumens: 7,500
• Number & Type Of LED: Warm White, Cold White, Red, Green, and Blue (5 Channel)
• LED Power HICOB Array: Yes
• Typical LED Life: 50,000+ Hours
• Warranty: 3 Years
• User Control Options: EOS-LUX Command Center or Customer Supplied Momentary Switch
• Electrical Installation: Simple 3 Wire Connection (see installation manual)
• Housing Type: Powder Coated Aluminium Body with Frosted Lens
• Driver: Multi-Channel Internal
• Supply Voltage Range: 10.5—31 V DC
• Max Current Draw 12/24V: 9.2 A/4.6 A
• Beam Angle: 70° - 90° Oval Beam
• Water Ingress Protection Rating: IP68
