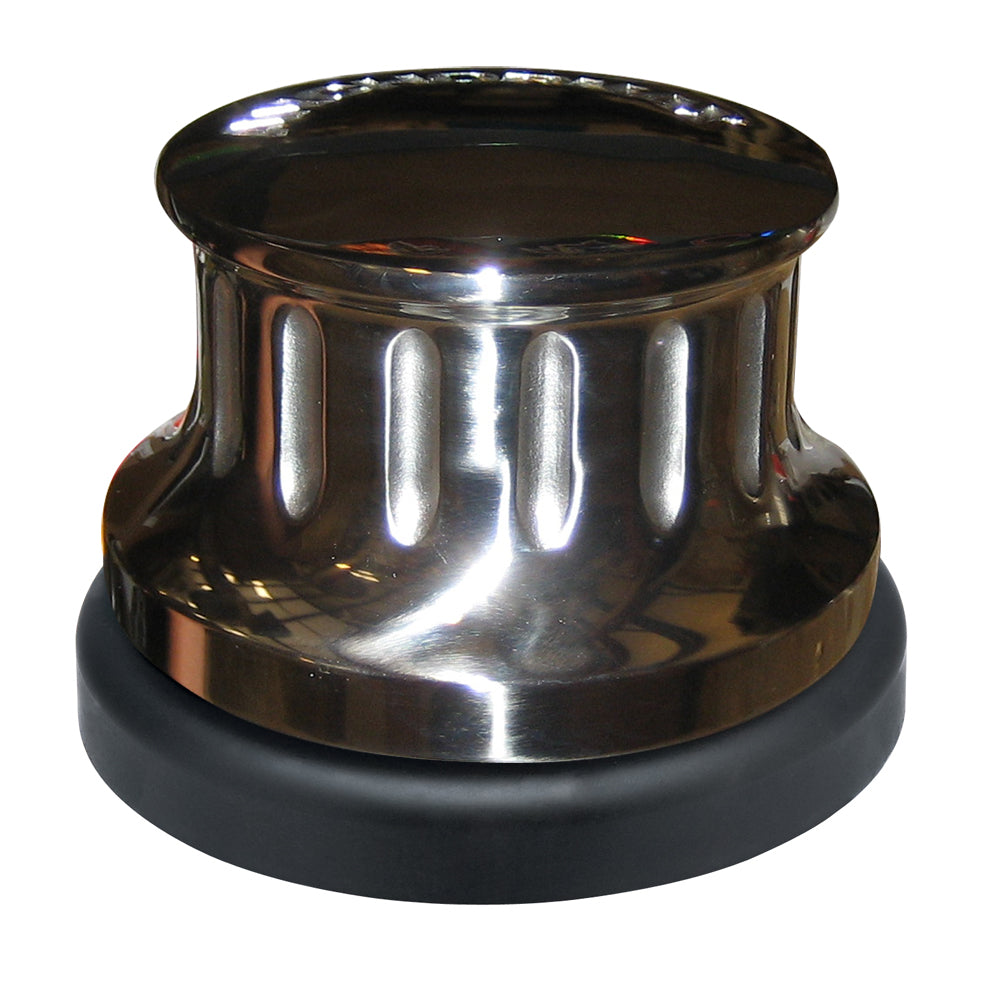

Maxwell ANCHORMAX Windlass ANCHORMAX

SALE

Maxwell

Maxwell ANCHORMAX Windlass [ANCHORMAX]

$1,537.39

$0.00

(120)

Shipment.png__PID:1566375f-ddd7-4ae7-946e-2503b97fe25e

ANCHORMAX™ Windlass

Features:

Has an extremely high power to weight ratio
ompact, fully sealed gearbox is driven by a vertically mounted, permanent magnet motor
Intrusion below decks is minimised making the design ideal for boats from 5m (16ft) to 10m (32ft)
Fitting to the boat is simplicity itself as no dismantling of the winch is required
Gear housings are marine-grade alloy and the drum is stainless steel
Supplied as a single direction (clockwise) unit, complete with deck switch, fastenings, template and fitting instructions
Not recommended for use to haul halyards
Not recommended for use to haul chain

Note: Each winch is supplied as a single direction (clockwise) fully tested unit complete with fitting instructions, deck switch, templates and fastenings.

STANDARD EQUIPMENT

Footswitch

SPECIFICATIONS
Maximum Line Pull	386kg (850lb)
Speed @ nominal working load	24m/min (76ft per min) (80 amps with 100kg/220lb load)
Voltage	12v
Power	600w
Weight	8kg(17.6lb)
Maximum Boat Load	10m (33ft)
Max. Boat Weight	4 Tons

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Quick Guide (pdf)
Brochure (pdf)
