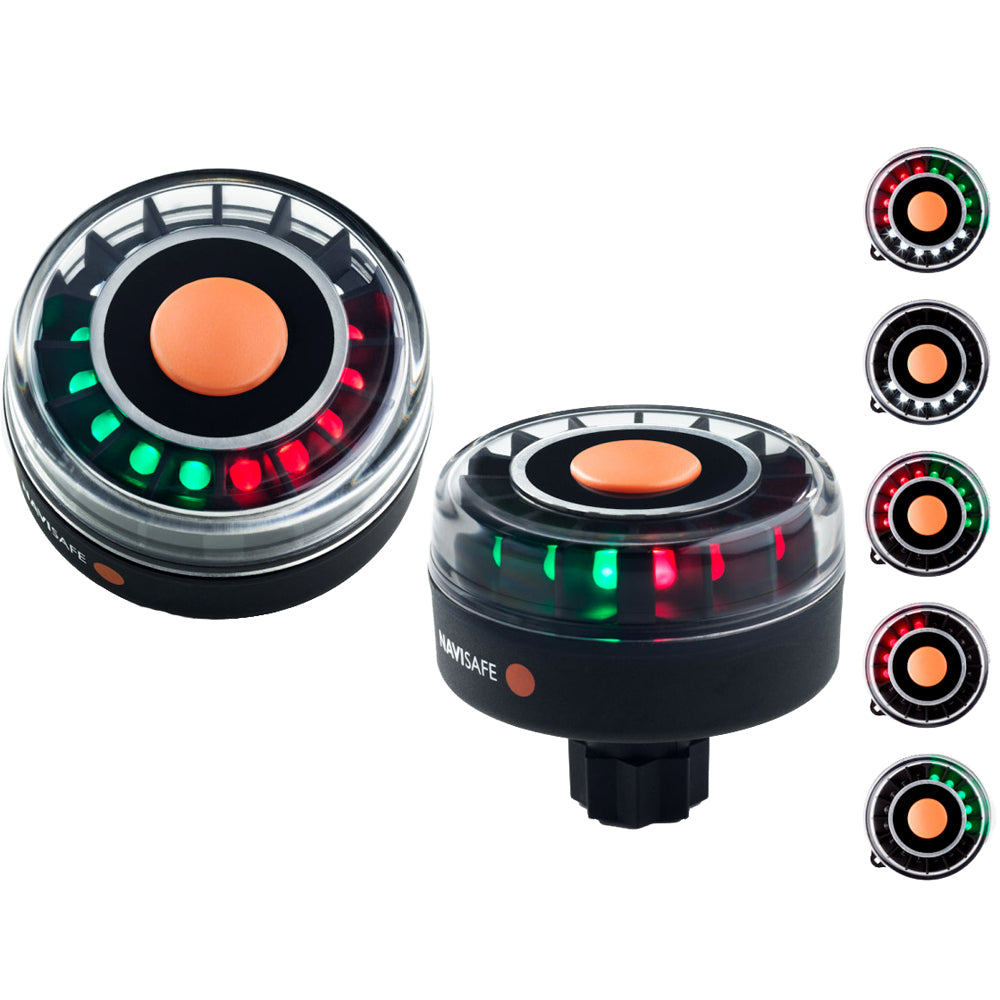

Navilight Tri-Color 2NM with RAILBLAZA Base

The Navilight Tricolor RB 2NM - US Coast Guard approved for 2 nautical miles includes a green light to be shown at the starboard side and a red light to be shown at the port side. In addition, it includes the white Sternlight, to be used at the stern. It is battery operated, uses super bright LED light, is water proof, floats and is fully compatible with the RAILBLAZA StarPort Mounting system. RAILBLAZA is a New Zealand based supplier of one of the most versatile and EASY-To-USE Mounting systems for boats, ATVs, RVs or trailer. The base of the Navi light has the form of a star and will fit directly in many Anchor Winches and Winches as well as to specially designed mountings such as the Navisafe RAILBLAZA Sideport, the Navisafe RAILBLAZA Starport and the Navisafe RAILBLAZA RailMount.

The green as well as the red lights show an unbroken light over an arc of the horizon of 112,5°. The white Sternlight shows an unbroken light over an arc of the horizon of 135°. All lights work independently, in a combination of all three or red/green together.

Examples of Usage:

*Based on the Convention on the International Regulations for Preventing Collisions at Sea, commonly called 72 COLREGs.

On a power-driven vessel of 12M or more in length but less than 50M in length:

• As green or red sidelight
• As sternlight

On a power-driven vessels of less than 12M in length:

• As green or red sidelight
• As combined green / red
• As sternlight

On a sailing vessel underway:

• As green or red sidelight
• As sternlight

On a sailing vessel of less than 20M in length as backup light:

• Tricolor lantern at or near the top of the mast

Specifications:

• USCG Approval, 2 Nautical Miles
• 5 Modes: Tricolor Masthead light (135° white, 112,5° red, 112,5° green), BiColor side light, red side light, green side light, white Sternlight
• Floatable, waterproof (20M) and air-tight
• For use with Railblazas StarPort system
• Powered by three AAA batteries (not included)
• Size: H = 62mm, Diameter = 68mm
• Weight (net): 93g

Modes / approximate burn time:

• 16 green / red / white LED, 360° Tricolor lantern / 12hrs
• 10 green / red LED, 225° Bi-Color sidelight / 20hrs
• 5 green or 5 red LED, 112,5° sidelight / 38hrs
• 6 white LED, 135° Sternlight / 32hrs

Specifications:

• Housing: Black
• Visible Range (Miles): 2nm
• Lens Color: White/Red/Green
• LED: Yes
• Voltage - Input Range (Volts): 3 AAA Batteries (Not Included)
• Box Dimensions: 3"H x 4"W x 5"L WT: 0.4 lbs
• UPC: 814154018800
