OceanLED XSeries X4 White LEDs 012301W

SALE

OceanLED

OceanLED X-Series X4 - White LEDs [012301W]

$226.00

$0.00

(120)

Shipment.png__PID:1566375f-ddd7-4ae7-946e-2503b97fe25e

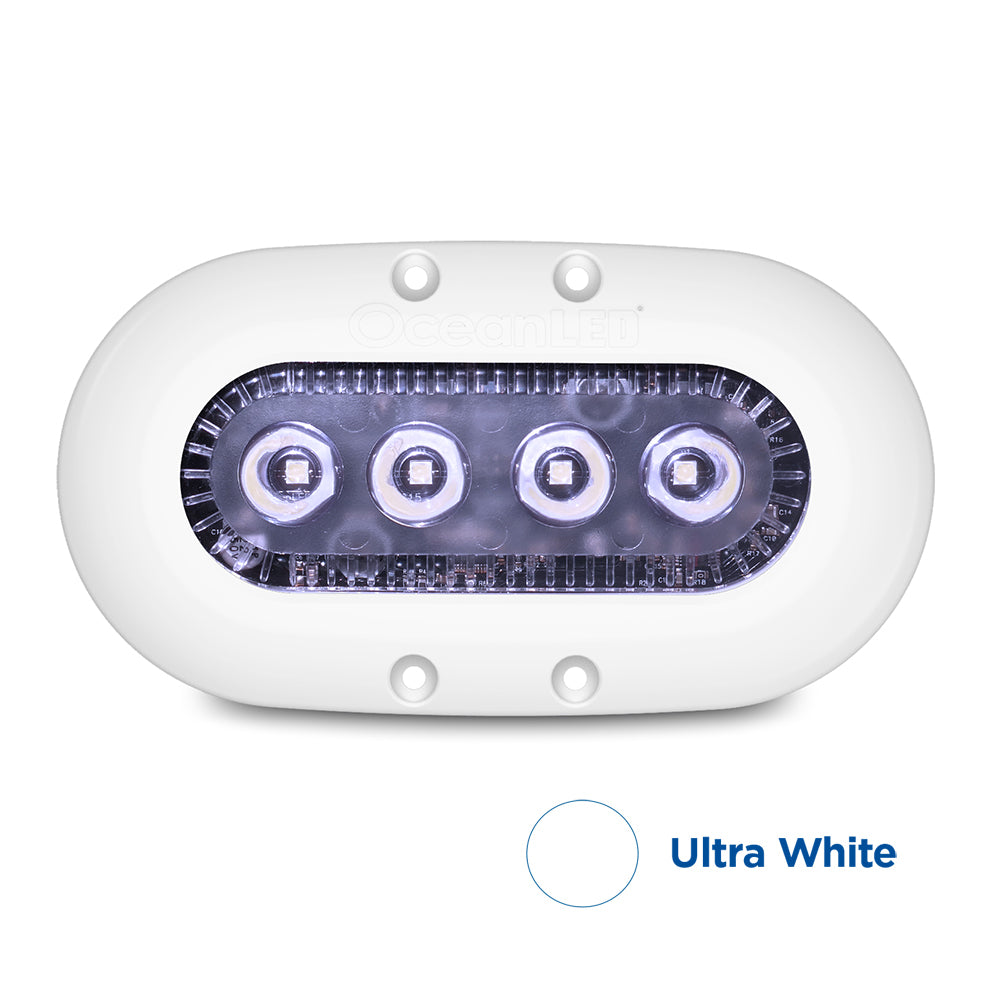

X-Series X4 - White LEDs

The OceanLED X-Series X4 combines brightness with affordability. Whether cruising or fishing, the X4 gives stunning performance allowing you to enjoy more time on the water with family and friends.

The X4 outputs an impressive 1,150 Fixture lumens from its low profile design and utilizes focused optics to produce a 60° circular beam from each LED providing great water penetration, illuminating a large area. Choose Midnight Blue or Ultra White color options. one app, your choice is virtually limitless.

Looking to catch more fish? Switch on the Fish-Strobe mode and the light emits a random strobe pattern that is proven to attract extra bait fish and help catch more fish.

The low profile, simple design is easy to install even for the weekend DIYer. A small 12.5mm hole is all that's needed to run the cable through the hull. Fix 4 screws and that's the hard work done! Simply attach to 12V and you are ready to light up your world.

Maintenance is virtually zero. Simply wipe the lens with a cloth to remove any marine growth thanks to the special Tritonium coating.

Features:

1,450 Lumens / 1,150 Fixture Lumens:

Outstanding performance from this small, bright light makes it the obvious choice for those who want tostand out from the crowd.

60° Beam Angle

A wide-angled, focused beam lights up a large area of the water.

Compact and simple design

Made from a chemically resistant optical polymer with a built in driver, there is a lot packed into this compact light. Installation needs only a small, 12mm hole in the hull to feed the cable through and 3 screws in place. No bonding required.

Easy to Clean

Thanks to its Tritonium coating, a simple wipe of the lens removes any underwater growth saving hours ofscrubbing each time you use it.

Fish-Strobe Mode

Exceptionally bright, randomized strobing of the light is proven to attract more fish and catch more bait.

Mounting Recommendations

Boat size: up to 30' (9M)
Transom / Hull spacing: 2-3' (0.5-1.0M)
Transom quantity: 2-4
Hull quantity: 4-8" (10-20cm)
Maximum hull thickness: N/A
Installation depth (to top of fixture): 300mm below water line
In water fitting: No

Technical

Light output equivalent to: 150W metal halide
Fixture Lumens* (total light output from a finished fixture): 1,150
Lumens: 1,450
Beam angle: 60° circular
Typical LED life expectancy: 40,000 hours
Minimum-Maximum operating voltage DC: 9 - 32 V DC
Minimum-Maximum operating voltage AC (AC/optional) Current / Amp draw (DC): 0.8A @ 12V DC - 0.4A @ 24V DC
Approx. light penetration (avg. water quality): 20' (6M)
Approx. Light penetration (perfect water quality): 45' (13+M)
Driver type: Internal
Driver size (L x W x H): N/A
Color options: Ultra White - Midnight Blue
Correlated Color Temp: 6500 K - 450 nm
IP Rating: IP68
Fish strobe: YES
Anti fouling properties: Tritonium coated lens
LED Manufacturer: CREE
