i50 SeaTalkng Instruments - Tridata
The i50 Instruments from Raymarine offer boaters an excellent combination of great looks, high performance and extreme value. Designed to accommodate either stand-alone or fully integrated installations, the i50 instruments feature Raymarine's exclusive SeaTalkng networking for simple installation and bullet-proof reliability. Each instrument offers extra-large digits, razor-sharp LCD displays and red backlighting for outstanding visibility in all lighting conditions. i50 Digital Instrument displays are fully compatible with our i70 Color Multifunction Instrument too. Boaters can now customize their systems with any combination of monochrome LCD, color LCD and analog instruments as needed. Raymarine also offers the p70 and p70R Color Autopilot controllers which also match with our instruments and multifunction displays.
For the ultimate in flexibility the i50 Instruments support SeaTalkng 0 CANBUS networking, as well as our original SeaTalk 1 networking. This makes upgrading older instruments a breeze. Connect your analog depth, speed and wind transducers directly to respective instrument display, or use the displays as repeaters for SeaTalkng smart transducer data: the choice is yours.
The ultra-sleek design of i50 line is designed to complement our full line of a-Series, c-Series and e-Series Multifunction displays, and looks great on the helm of any boat. Each instrument comes with a low-profile surface mounting kit and silicone rubber sun cover. An optional bracket mounting kit is also available separately.
i50 Instruments are designed to operate from 12V DC power, and are ultra-efficient drawing less than 1W as repeaters, or 2.4W while hosting a transducer. All of the i50 Instruments are waterproof to IPX6 standards. The i50 instruments are all covered by Raymarine's industry leading 2-year warranty, upgradeable to 3-years at no charge by registering online with 90 days of purchase.

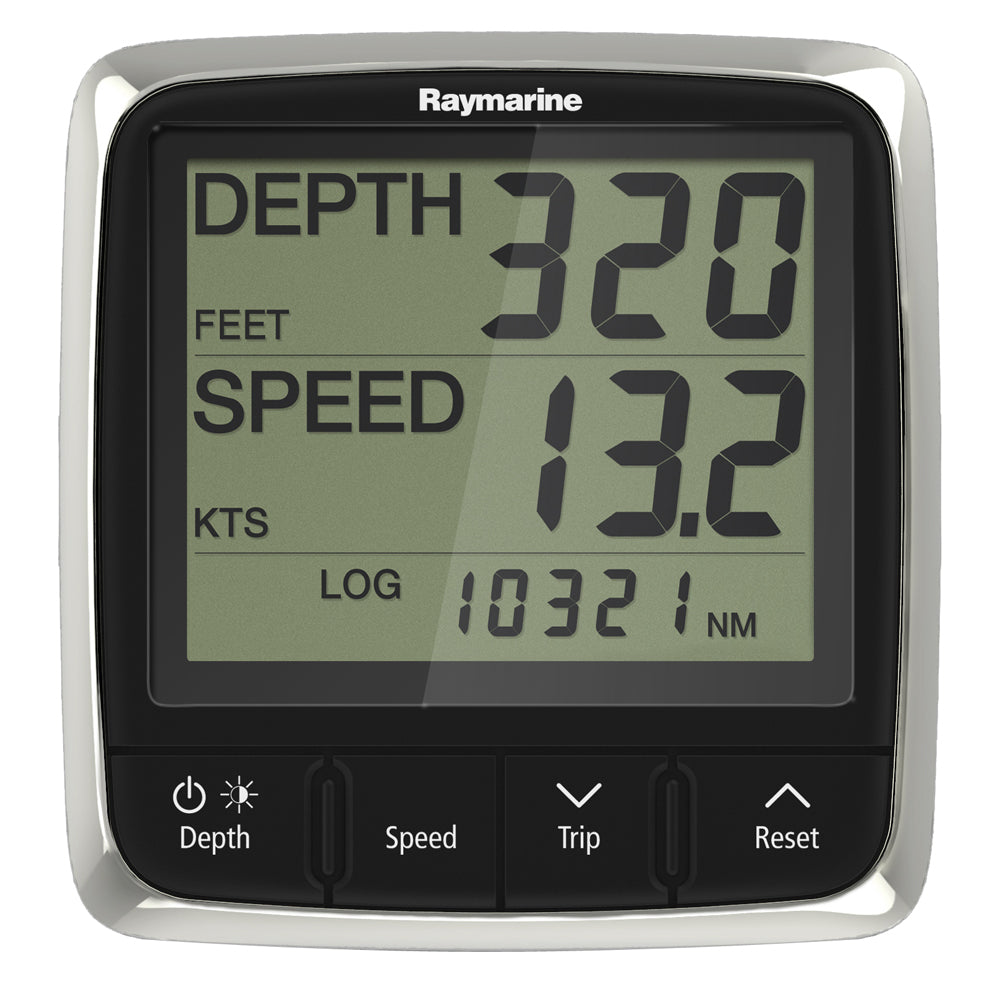

i50 Tridata Instrument
The i50 Tridata is a convenient 3-line instrument that combines the functions of the Speed and Depth Instruments into one display. This makes the i50 Tridata ideal for installations on helms where space is a premium, or as a depth and speed repeater solution for other locations on the boat.
- Red backlighting for outstanding night-time visibility.
- SeaTalkng and SeaTalk-1 connectivity for maximum flexibility
- Use a primary display or as repeater of i50 depth and speed instruments
- Built-in depth and speed transducer connections
The i50 Tridata's 3-line LCD display can show current depth, current speed, distance log, trip log and water temperature. Additional display modes include maximum speed, average speed, and VMG to windward. For racers, Tridats has a count-up timer, and 2 race start timers. Tridata's robust alarm functions include a shallow depth alarm, deep depth alarm, shallow anchor alarm and deep anchor alarm.
i50 Key Features
- Ultra-modern design complements Raymarine's latest a-Series, c-Series and e-Series Multifunction display and instrument systems.
- Large, crisp LCD displays with high contrast for excellent visibility.
- Red backlighting for outstanding night-time visibility.
- SeaTalkng and SeaTalk-1 Networking for maximum flexibility.
- Fully compatible with i70, p70 and p70R Color Instruments and Autopilots.
- 110mm x 115mm footprint is identical to older Raymarine ST60+ instrumentation making upgrading easy
Specifications:
- Shape: Square
- Instrument Function: Multifunction
- Digital/Analog: Digital
- Box Dimensions: 4"H x 7"W x 10"L WT: 2 lbs
- UPC: 723193730737
Owner's Manual (pdf)
