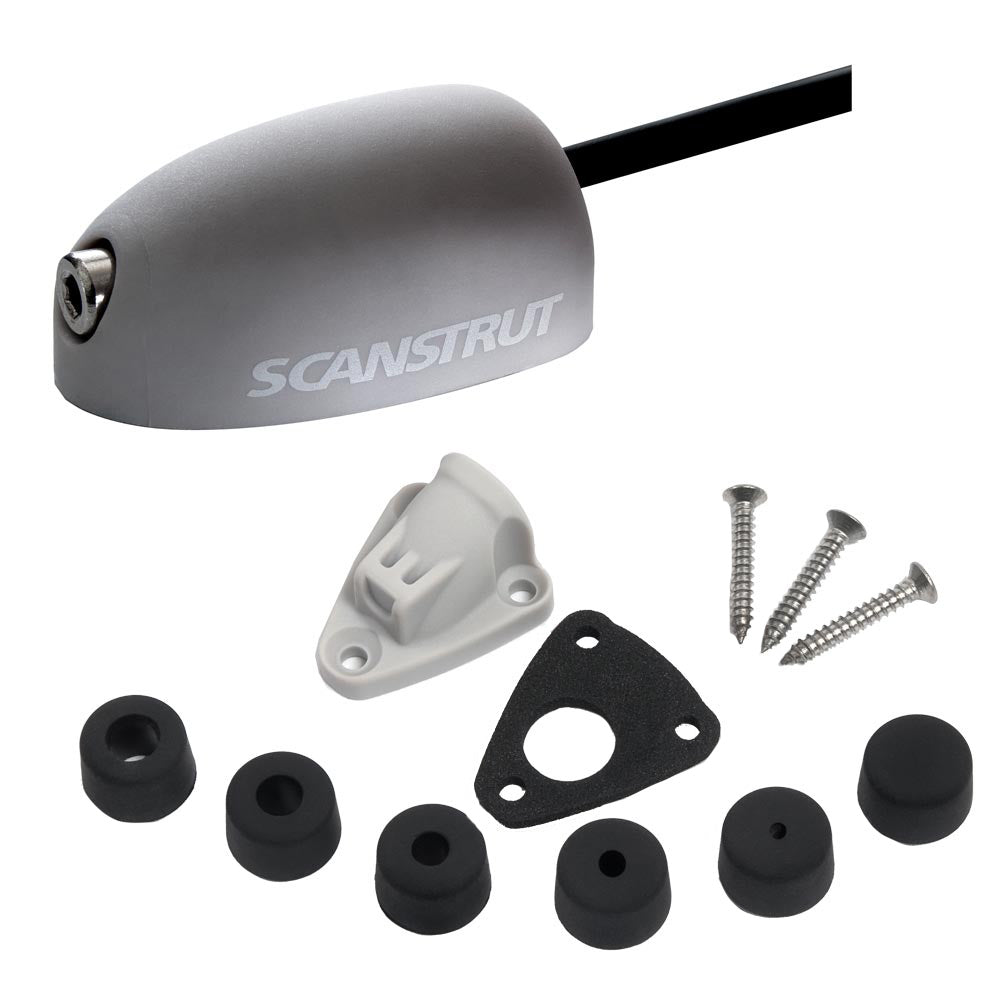

DS-H6-BLK Horizontal Cable Seal - Grey

This horizontal cable seal from Scanstrut provides the ideal solution to waterproof cable routing and is perfect for installing solar panels, light bars, antenna and navigation light cables.  A tapered gland forms a watertight seal around the cable and a closed-cell foam gasket between the housing and the deck ensures a 100% watertight fitting.

Features:

• Watertight installation - 100% waterproof with an IPX68 rating
• Easy and reliable installation - each unit supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.
• No Need to Remove Cable Connectors - split-seal option does not require connector removal during install.
• The low-profile construction is impact resistant and provides extra protection from water.

Technical Specifications:

• Fits cable size (diameter) - .08" to .24" (2 - 6 mm)
• Height - .79" (20 mm)
• Width - 1.12" (28.5 mm)
• Color - Grey
• Orientation - Horizontal
• Material - Stainless Steel

In the Box:

• Cable seal
• Mounting hardware
• Installation manual

*Sold as an Individua

Specifications:

• Type: Deck Seal
• Box Dimensions: 1"H x 4"W x 8"L WT: 0.2 lbs
• UPC: 5060114794931
