Shakespeare 393 23' Single Side Band Antenna [393]

$509.99
$0.00

(120)

Shipment.png__PID:1566375f-ddd7-4ae7-946e-2503b97fe25e

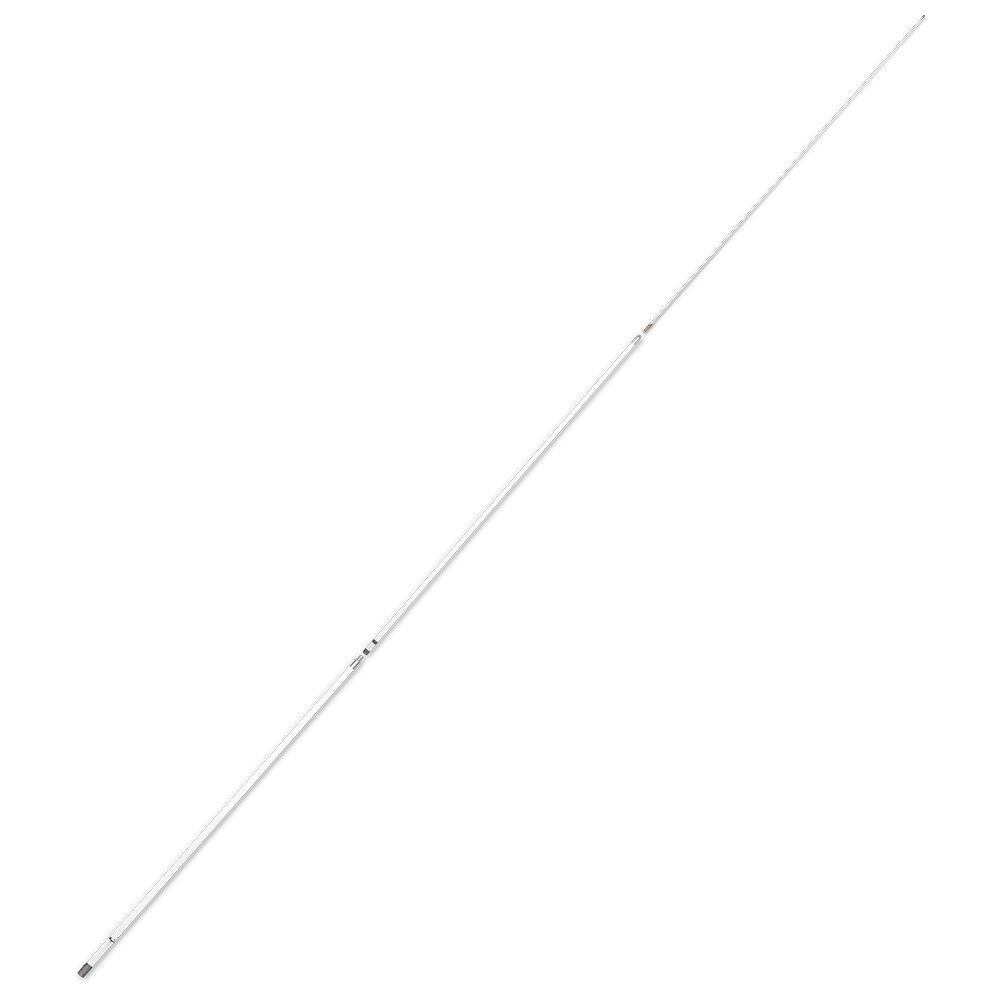

Shakespeare Style 393 SSB
23' LENGTH

WHIP ANTENNA WITH CONDUCTORS RUNNING FULL-LENGTH (NO LOADING COIL)

The Style 393 antenna is electrically the same as the industry standard Style 390, For use in calm to moderate seas.

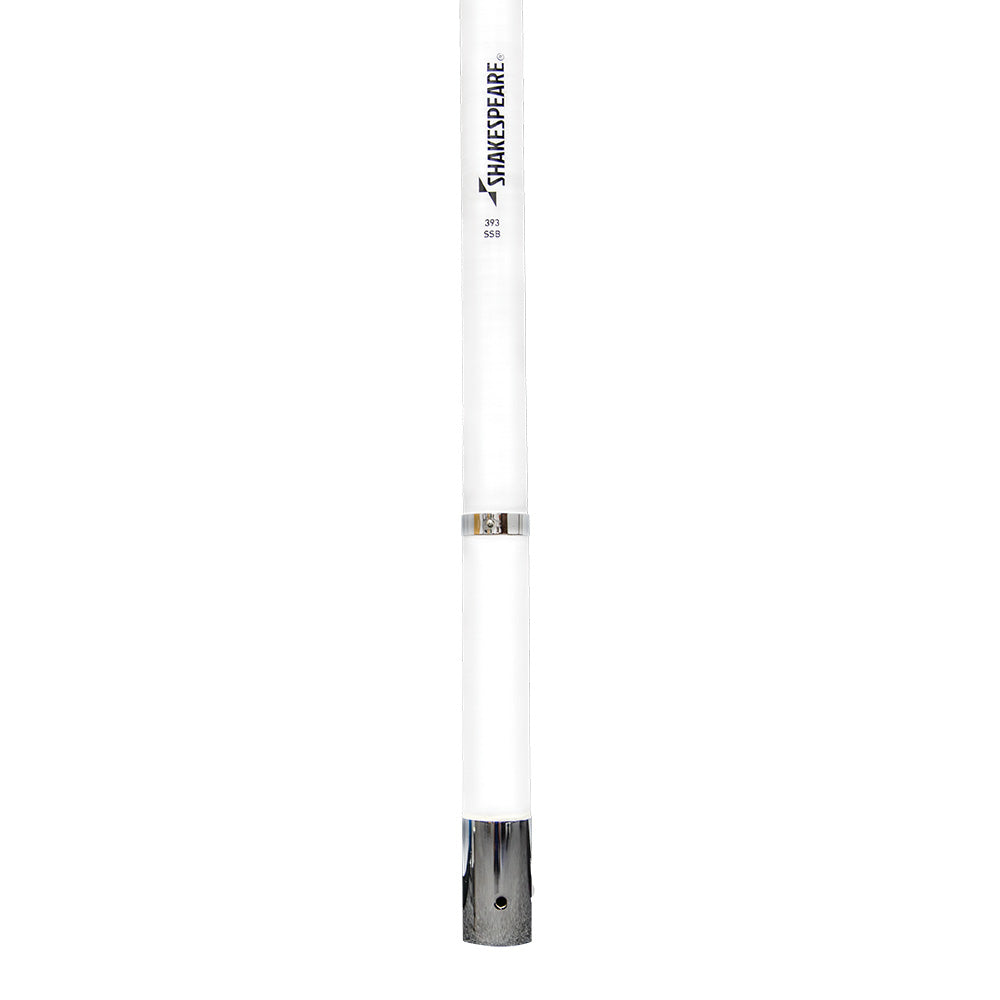

  • Chrome-plated brass ferrules, bottom ferrule has 1"-14 thread
  • Side feed termination band
  • Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit for deck or side mounting

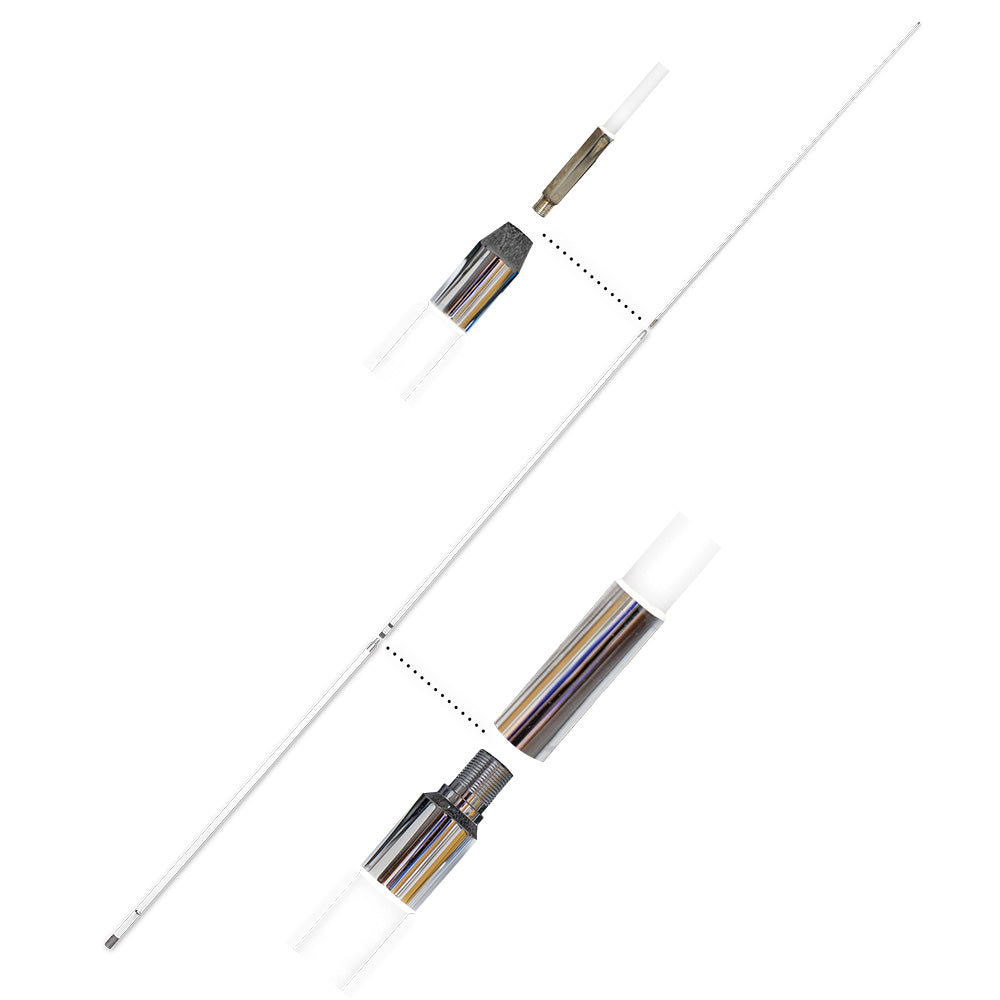

  • Three sections: Base 92"; Center 92"; Tip 92"
  • Shakespeare Limited Warranty: 2 years


Technical Specifications:


Frequency: 2-30 MHz HF band with tuner
Bandwidth: Resonant frequency 10.8 MHz
SWR: N/A
Impedance: (Ohms): N/A
Gain: N/A
Max Input (Watts): 1000
DC Ground: N/A
Termination: Side Termination
Height (feet): 23
Polarization: Vertical
Radiation pattern: Omni-directional

Specifications:

  • Antenna Band: SSB
  • Color: White
  • Construction: Fiberglass
  • Ferrule Type: Chrome Plated
  • Length (Inches): 144"
  • Box Dimensions: 3"H x 3"W x 96"L WT: 5.2 lbs
  • UPC: 719441600075

Quick Guide (pdf)
