Shakespeare 5206N 8 VHF Antenna 5206N

SALE

Shakespeare

Shakespeare 5206-N 8' VHF Antenna [5206-N]

$104.99

$0.00

(120)

Shipment.png__PID:1566375f-ddd7-4ae7-946e-2503b97fe25e

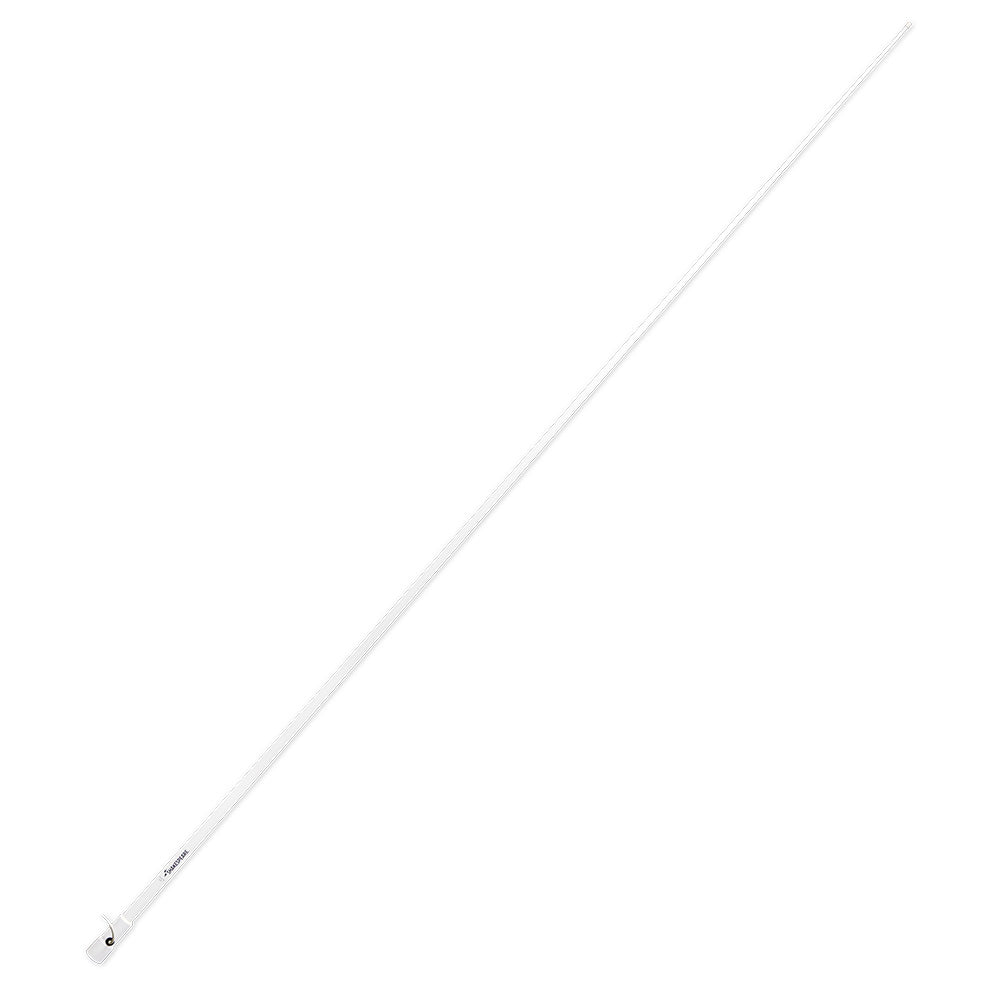

Shakespeare Style 5206-N VHF Marine - Reduced Length Version

8' LENGTH 6dB

END-FED WITH MATCHING STUB

Same as the Style 5206-C, but the 5206-N has a nylon ferrule.

An economical and lightweight, self-supporting antenna for good communications where range is not the predominant factor.

Quality copper cable elements for good range and efficiency

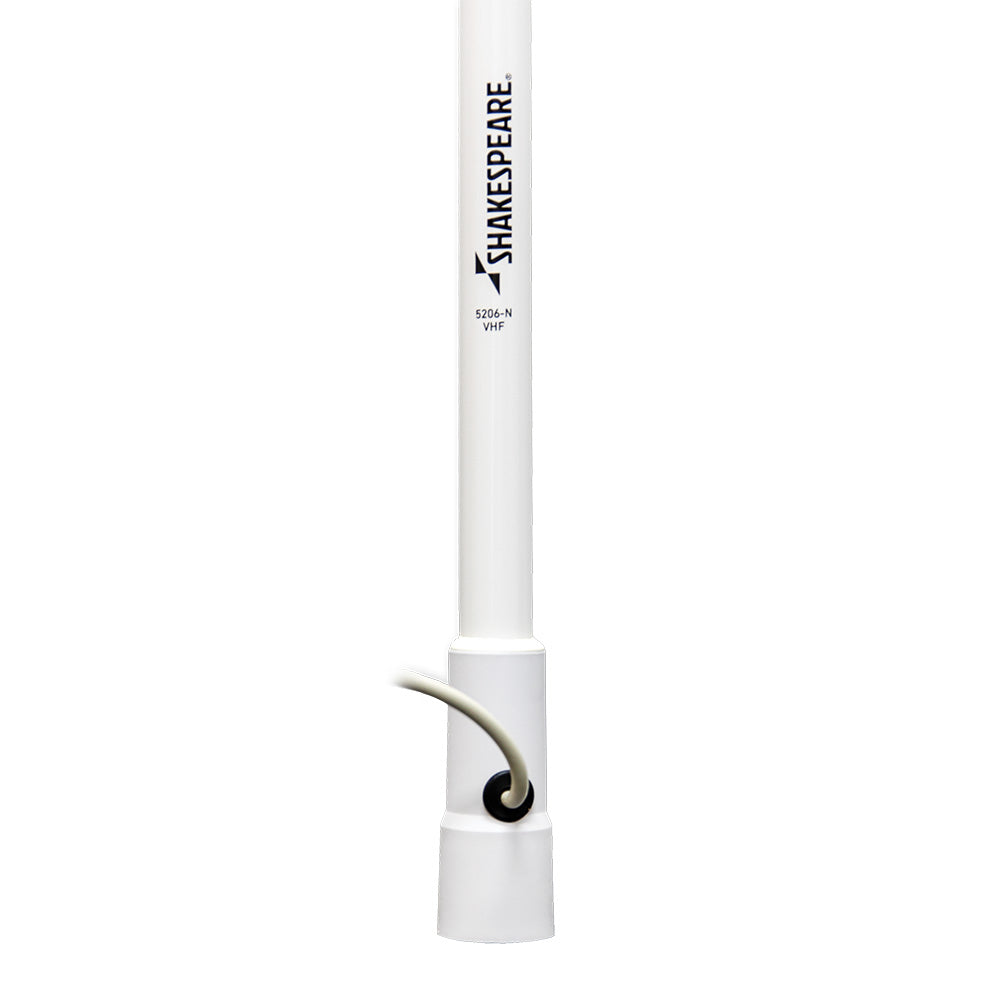

Nylon ferrule with standard 1"-14 thread
Includes 15' RG-58 cable and a PL-259 connector
Suggested mount: Shakespeare Style 495 Lift-n-Lay Mount or Style 4186 Ratchet Mount
Twin to: Shakespeare Styles 5205 and 5207 CB Marine antennas
One section
Shakespeare Limited Warranty: 2 years

Technical Specifications:

Frequency:	VHF Marine band
Bandwidth:	3 MHz
SWR:	1.5:1 @156.8 MHz
Impedance:	(Ohms): 50
Gain:	6 dB
Max Input (Watts):	50
DC Ground:	NO - the antenna will read "open circuit" when checked with an ohm meter or continuity tester.
Termination:	RG-58
Height (feet):	8
Polarization:	Vertical
Radiation pattern:	Omni-directional
