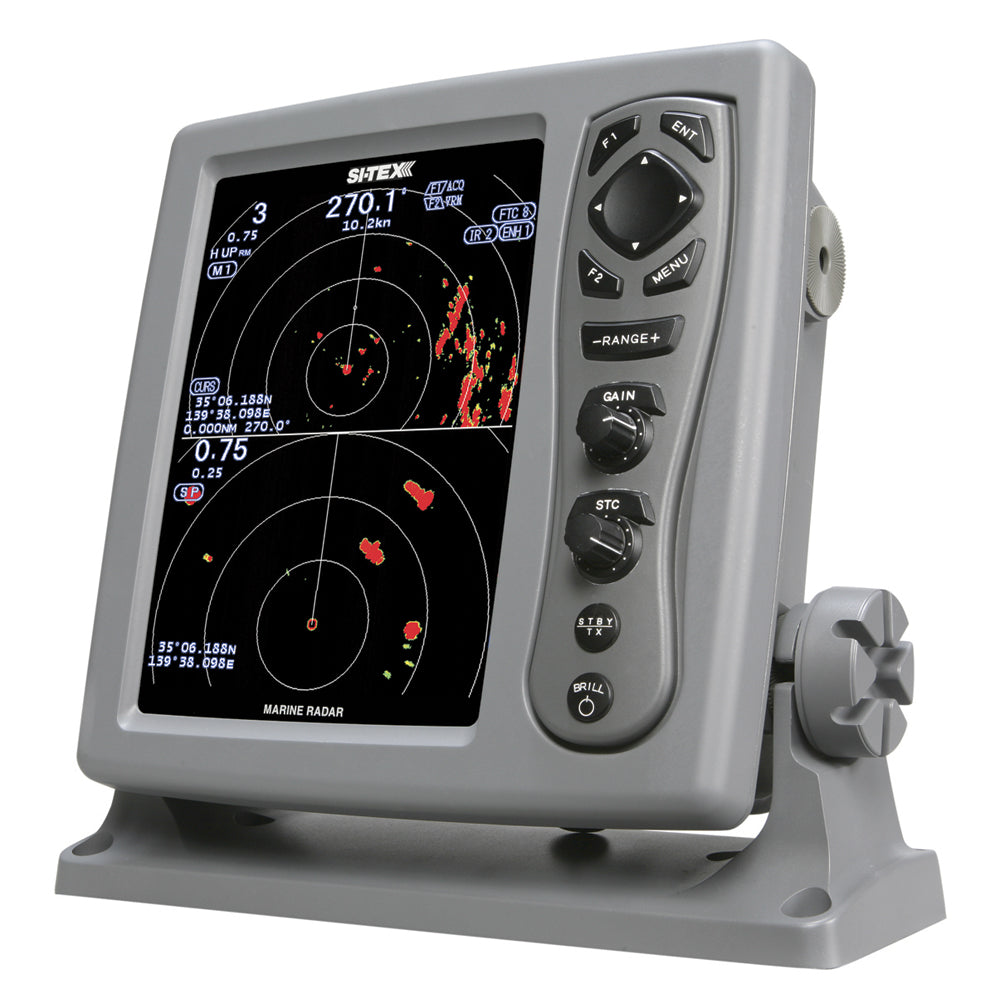

SI-TEX 8.5" Color LCD Radar w/4kW Output - 1/16-36nm Range - 25" Radome [T-941A]

$3,499.00

$0.00

(120)

Shipment.png__PID:1566375f-ddd7-4ae7-946e-2503b97fe25e

8.5" Color LCD Radar with 4kW Output - 1/16-36nm Range - 25" Radome

SI-TEX's T-941 Radars feature sophisticated Hyper-Digital Processing™ (HDP) Technology for real-time presentation and superior target discrimination.

Features:

It virtually eliminates unwanted noise to provide a clearer detailed image of targets and enhances the detection of smaller targets
Radome: 4kW, 36NM, 25" Display
- Brilliant 8.4" color LCD daylight viewable display
- 480 x 640-pixel resolution and anti-reflective glare coating for outstanding viewing
- True-color radar feature displays echoes in different colors depending on signal strength
- The real-time presentation offers smooth movement as bearing changes
- The T-941 has two-speed antenna rotation for tracking of quick-moving, close-in targets:
  - 48 RPM
  - 24 RPM (Requires 24 Volt DC input)
- Selectable range scales from 1/16 NM
- Warning Zone alerts you to "incoming" and "departing" targets breaking your preset guard zone
- Automatic hands-off tuning maintains maximum sensitivity at all times with manual override for the experienced use
- RGB output for connecting (2) optional external monitors
- Easy access to all system functions with simply arranged keypad, programmable function keys, comprehensive menus and dedicated rotary knobs for instant control of Gain and STC
- Built-in flush mounting system makes installation easy
- All this advanced radar technology is housed in a sleek, waterproof (IPX5 rating) case design that can be mounted almost anywhere
- Dual Range Radar function lets you view split-screen displays of both long and short-range targets simultaneously
  - Monitor a nearby buoy and a far off island at the same time
- True Trail function clearly identifies moving targets from stationary targets
- The display shows the exact movement of other vessels like drawing tails, while land and buoys are shown as stationary objects even while your vessel is moving
- Accepts CCD camera input, to display split-screen Radar and Camera
  - Allows you to monitor important areas of your vessel while shill keeping watch of your surroundings
- Optional ATA (Automatic Tracking Aid) allows you to tracks up to 50 user designated targets
- Designate the target and the radar will automatically provide the target distance, speed, bearing, course, and closest point of approach on all user targets selected.
- Optional AIS interface displays information on up to (100) AIS targets including the vessel's MMSI number, name, course, and speed of each vessel with an AIS transmitter
  - This information is sent continuously and is useful in navigating, traffic monitoring, and collision prevention

Specifications:

Antenna Unit:

Scanner 25" Radome
Peak Power Output 4kW
Output Frequency 9410 + 30MHz
Beam Width:
Horizontal 3.9°
Vertical 25°
Rotation 24 or 48 rpm (48 rpm; 24V DC or more
Pulse Width .08, 0.15, 0.3, 0.5, 1 use
IF Frequency 60 MHz
Range Accuracy Better than 8m
Min. Detecting Distance: Within 25m

Display Unit:

Display Size/Type 8.4" TFT Color LCD (480 x 640 pixels)
Off Centering Max 66%
Display Modes Heads up, North up*, Course up* WPT up**, True motion*
Indication System PPI, PPI/PPI, PPI/NAV
Range Scales NM 1/16, 1/8, 1/4, 1/2, 3/4, 1, 1.5, 2, 3, 4, 6, 7, 12, 16, 24, 32, 48 (T -- PNEW to 24,T -- 941 to 32, T -- 940 to 48)
Range Rings NM 1/32, 1/16, 1/8, 1/4, 1/2, 3/4, 1/1.5, 2, 3, 4, 6, 8 12
Bearing Accuracy Better than + 1°
Video Level 8 colors
Distant Unit (VRM unit) NM, SM, KM
Alarms Entry or Breakaway (In and Out)
Other Functions Interference rejection, Target expansion, VRM, EBL, Parallel index, Course position (Lat/Lon), Bearing (true/relative), Trail*, RGB Monitor output, Slave display monitor input/output, External buzzer. Accepts CCD camera input
AIS Interface Option (100 targets)
ATA Option (Auto/Manual, 50 targets)
Input Data Format BEC, BWC, BWR, DPT, DBT, GGA, GLL, GNS, HDG, HDM, HDT, MTW, MWD, MWV, RMA, RMB, RMC, VHW, VTG, XTE
Output Data Format TTM, TLL
Power Requirements 10.8 - 31.2 Volt DC
Power Consumption 55 Watt
Water Protection
- Display: IPX 5
- Antenna CFR 46 IPX
