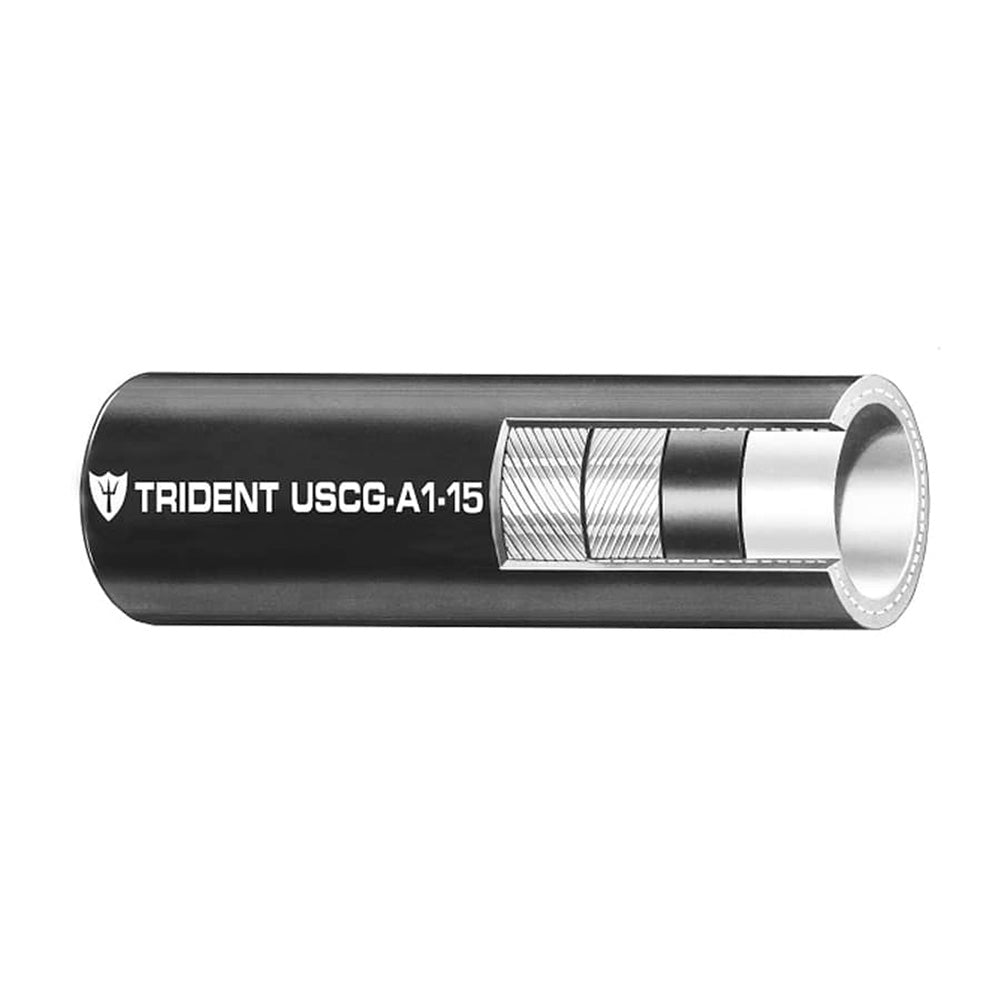

5/16" x 50' Boxed Low Permeation Type A1-15 Fuel Line Hose - Black

Trident Barrier Lined A1-15 Fuel Hose for both gasoline (including ethanol blends up to 85%) and diesel (including bio diesel blends up to B100). This hose is built with the best fuel, fire, and age-resistant formulation and a unique "Barrier Liner" on the inside surface of the tube, so fuel is not in direct contact with rubber.

Features:

• Provides extraordinary resistance to fuel permeation, aging, and also to fire, heat, cold, and the ozone
• Also provides excellent bend-ability
• NMMA Type Accepted & CE certified

Application:

• Marine Fuel Hose (distribution, return, vent and transfer)
• For all marine fuels including gasoline, alcohol blends (CE-10), diesel and bio-diesel

Construction:

• Tube: Nylon Internal Barrier, NBR
• Cover: NBR/PVC Blend
• Reinforcement: Polyester 2 spiral
• Temperature Range: -20°F to 212°F (-28ºC to 100ºC)
• Length: 50 ft. (15 m) Boxed

Specifications:

• Inner Diameter: (inch) 5/16" / (mm) 7.92
• Outer Diameter: (inch) 0.611 / (mm) 15.5
• Burst Pressure: (psi) 400 / (mpa) 2.76
• Working Pressure: (psi) 100 / (mpa) 0.69
• Bend Radius: (inch) 1.75" / (mm) 44.5
• Weight: (lb/100 ft.) 13.3 / (kg/m) 0.198
• Permeation Rate: <10 (Standard is 10g/m2/24 hrs (CE10)

*The #365 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, USCG Type A1-15; CARB Executive Order RM-17-008 and EPA Certified low permeation Type A1-10

Specifications:

• ID Diameter (inches): 5/16"
• Length (Feet): 50'
• Box Dimensions: 3"H x 18"W x 18"L WT: 7.9 lbs
• UPC: 704917010564
