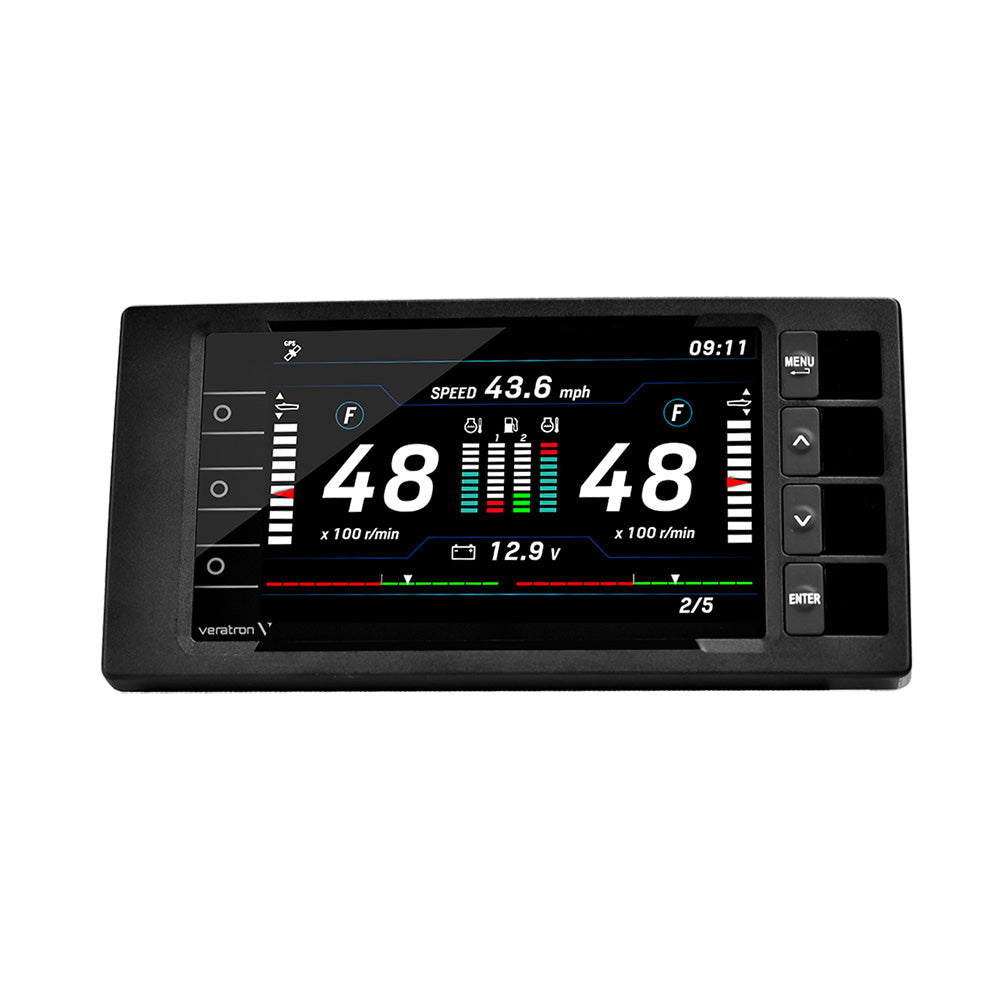

OceanLink® 7" NMEA 2000® Certified TFT Gateway - Black

The new OceanLink® 7" multifunction TFT Display features a 24-bit/16 m colors optically bonded display with transmissive layer technology for perfect readability even in direct sunlight. The TFT Display shows and distributes a wide array of data received from NMEA 2000® and J1939 CAN Bus systems and analog sensors directly connected to the display. Users can customize up to 40 data pages with single, double, treble, or quad grid layouts.

TFT Displays can be daisy-chained with other OceanLink® gauges, displays, or NavControls using the unique VDO Marine Bus or directly connected to the NMEA 2000® backbone (optional adapter cable required) for simple installation on any yacht.

Features:

• Touch screen function
• Optically bonded mineral glass lens
• Front & rear side protection rating IPX7
• 1x NMEA 2000® connector
• 2x J1939
• 6x Analog input
• 2x Frequency input
• 2x 4–20 mA
• 3x Digital input or 0–5 V
• 2x Alarm output
• 2x Video input
• 2x EasyLink data output
• 2x Programmable alarm output 500 mA
• Operating temperature range -20°C/+70°C
• 12/24V

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Instrument Function: Multifunction
• Screen Size: 7"
• Shape: Rectangular
• Transducer Type: Not Included
• Box Dimensions: 4"H x 8"W x 12"L WT: 3.35 lbs
• UPC: 7640178724457
