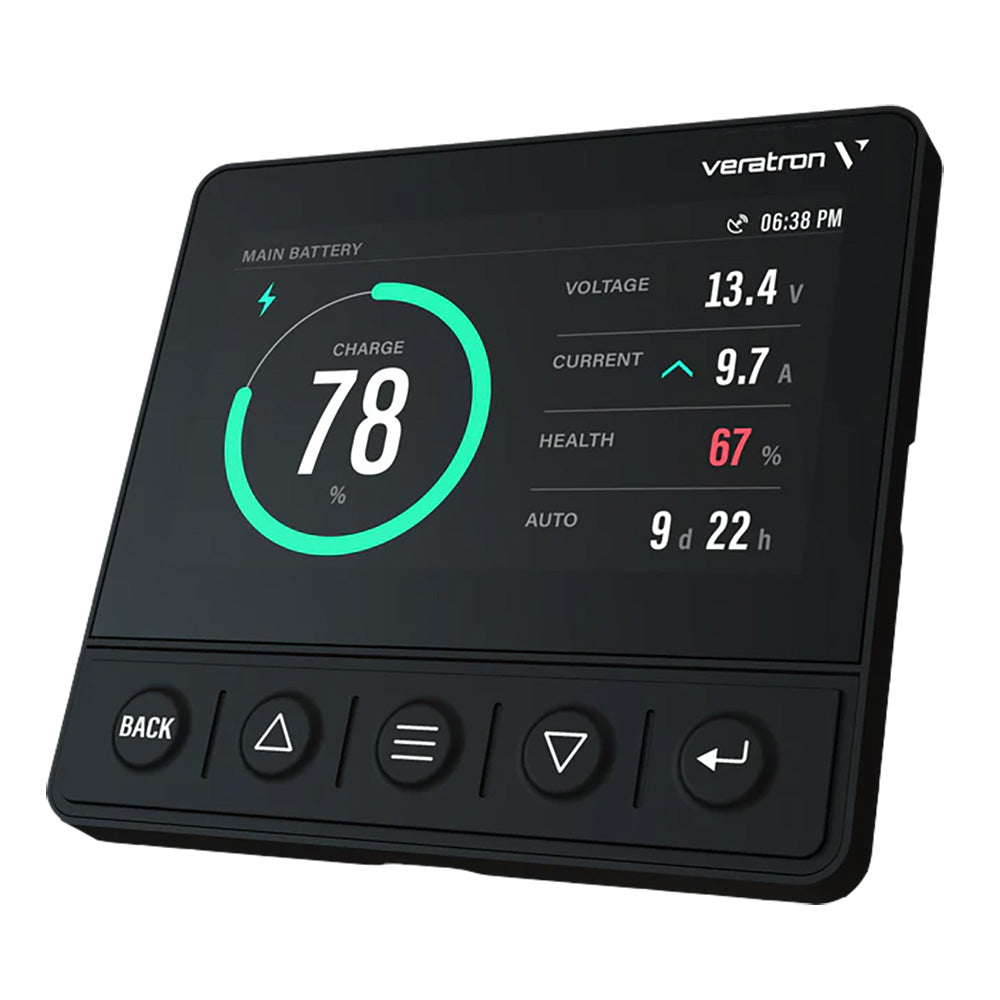

OL 43 Smart Marine Monitoring TFT Display
Experience seamless integration and real-time monitoring with the OL 43. Whether you're tracking engines, batteries, tanks, or navigation data, this 4.3” optically bonded IPS TFT display ensures perfect readability—even under direct sunlight. With support for NMEA 2000® and J1939 CAN, plus analog inputs and HTML5-ready Ethernet, the OL 43 is your all-in-one solution for modern marine instrumentation.
The OL 43 Multifunction Display redefines clarity and control in marine environments. Featuring a 4.3” optically bonded IPS TFT screen with anti-glare mineral glass, it delivers brilliant visibility even in harsh conditions.
Designed for seamless integration, it supports NMEA 2000® and SAE J1939 CAN protocols, analog sensors, and Ethernet connectivity.
With lightning-fast startup, customizable multilingual GUI, and robust IPX7-rated housing, the OL 43 is built to perform. Whether monitoring engines, tanks, batteries, or navigation data, this display offers intuitive interfaces, graphical insights, and real-time alarms. Its compact 85mm round form factor and flame-retardant housing make installation simple and safe.
Features:
- IPS TFT display technology for great readability even in direct sunlight
- Optical bonded mineral glass lens with anti-glare coating
- Protection rating IPX7
- NMEA 2000® certified connectivity
- SAE J1939 CAN interface
- 4x Analog input for sensor connection
- Integrated NMEA 2000® converter
- Full engine diagnostic with programmable alarm output
- Reliable in high-temperature environments
- Installation in 85 mm panel cuts via spinlock
Specifications:
- Box Set: No
- Gauge Size: 4.3"
- Gauge Type: Multifunction
- Series: OL
- Voltage - Input Range (Volts): 12/24v
- Box Dimensions: 4"H x 6"W x 6"L WT: 1.05 lbs
- UPC: 7640190290091
