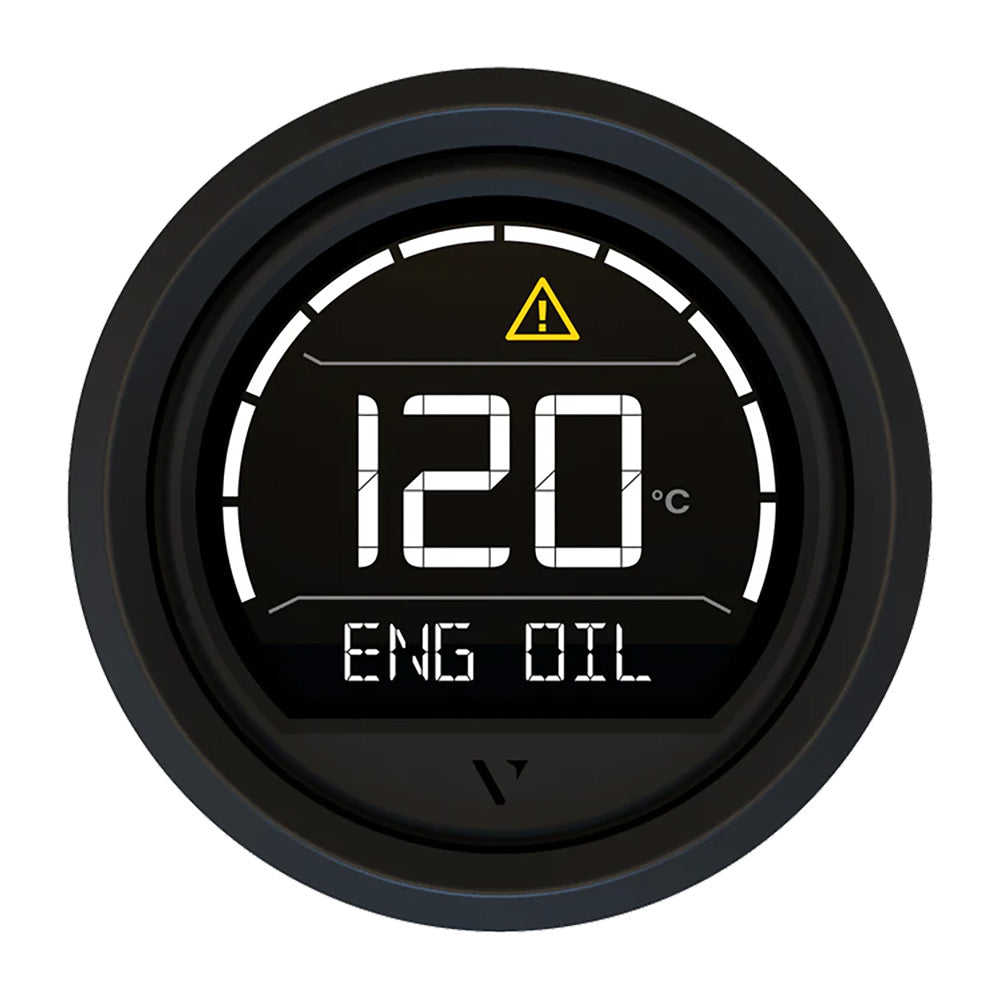

VL Digital 52 with Triangular Black Bezel

Experience the next generation of instrumentation with VL Digital — where precision meets innovation. Designed for versatility, it combines high-performance digital technology with intuitive features like customizable displays, multiple input options, and smart connectivity. Whether for advanced monitoring or seamless integration, VL Digital offers a modern, user-friendly solution for a wide range of applications.

Seamless configuration at your fingertips – Easily configure your VL Digital device in seconds using Veratron’s proprietary wireless link. All you need is your smartphone and the configurator App. The user-friendly configurator App will easily guide you through the configuration, which you can download to the instrument by simply bringing your phone to it.

App Configuration:

• Fast - no prior pairing is required, just near the phone to instantly configure it.
• Efficient - thanks to the passive receiver, you can configure the device to be powerless!
• Secure - the configuration requires proximity to the device.
• Cost-effective - no hardware interface is required.

Features:

• 8-pole MQS connector plug-and-play compatible with existing ViewLine gauges

• Fully configurable with a smartphone app to display the data you need
• Programmable Warning and Alarm levels for the displayed data
• Alarm output for external buzzer or lamp activation
• Data measured from the analog port or received via CAN bus with SAE J1939 protocol

• Flexible - Two devices only to cover all the system configurations you might need
• Compatible - Plug-and-play replacement of your ViewLine instrument thanks to the backwards-compatible connector pinout
• Programmable - Fully configurable with a smartphone app to display the data you need.
• Readable - The sunlight-readable display ensures perfect readability under every lighting condition
• Customizable - Give your VL Digital instrument a stylish touch with 9 different decorative bezels

Specifications:

• Box Set: No
• Gauge Size: 2-1/16"
• Gauge Type: Multifunction
• Series: VL Digital
• Voltage - Input Range (Volts): 12/24v
• Box Dimensions: 3"H x 3"W x 4"L WT: 0.35 lbs
• UPC: 7640190290893
