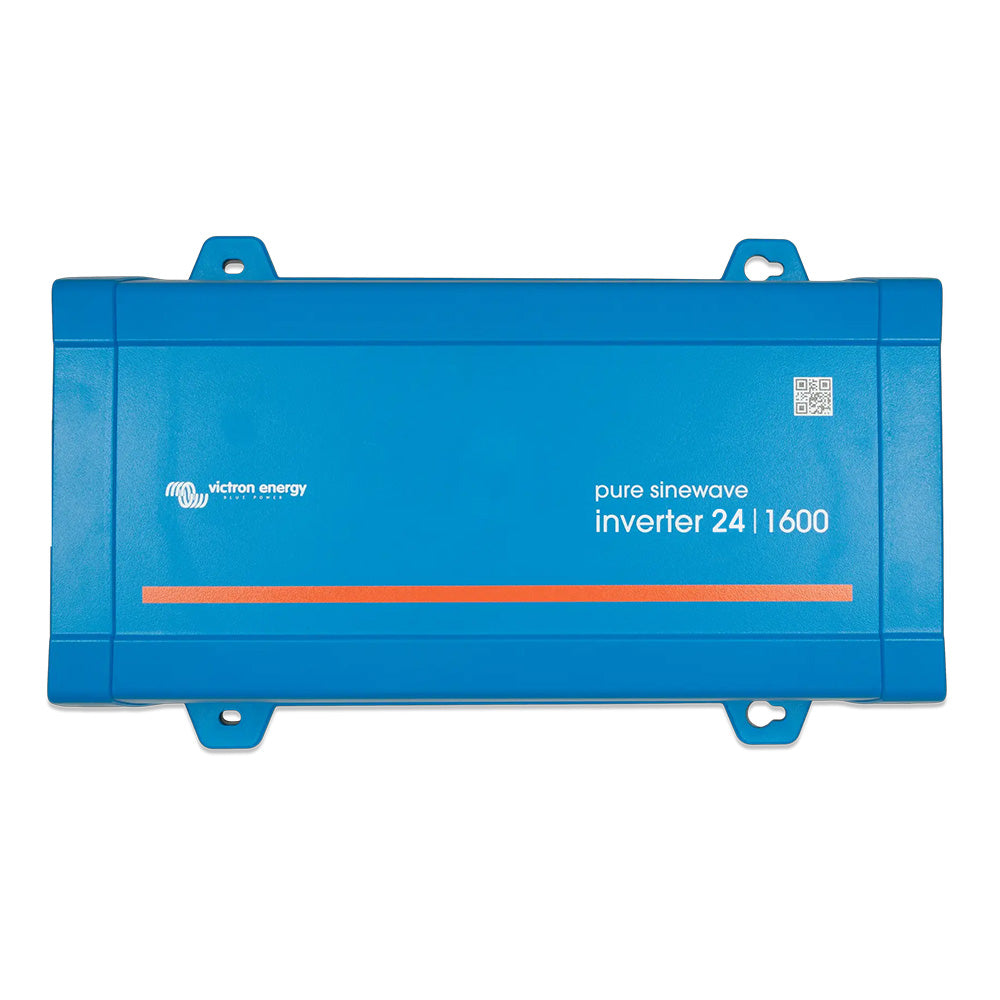

Inverter 24/1600 120V VE.Direct NEMA 5-15R
The Phoenix Inverter Smart is an efficient and reliable inverter. Built on our proven and field-tested Phoenix inverter platform, it now comes with a slimmer design and a full metal casing. Models are available in 1600VA, 2000VA, 3000VA and 5000VA for 12, 24 or 48V systems.It's powerful enough to supply most common plug-in appliances in your car, boat, caravan, or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency, and a high-quality sinewave.
Installation is simpler than ever before, with terminals now more accessible for the installer, enabling a more professional finish.
Bluetooth is built in and makes setting up your high-power inverter easier than ever before.
Configure alarms, alarm relay, voltage cut-off, output voltage, frequency, eco-mode, and more, all from within VictronConnect.
Features:
- 1600 VA continuous output at 25 Deg C
- 1200 Watts continuous output at 25 Deg C
- Peak Power 2200 Watts
- Max efficiency 87%
- Zero load power 12 Watts
- Weight 20 lbs
- Can accept up to 1 awg DC Power Wire
Please contact your dealer for any returns, repairs or support issues related to this product. Specifications:

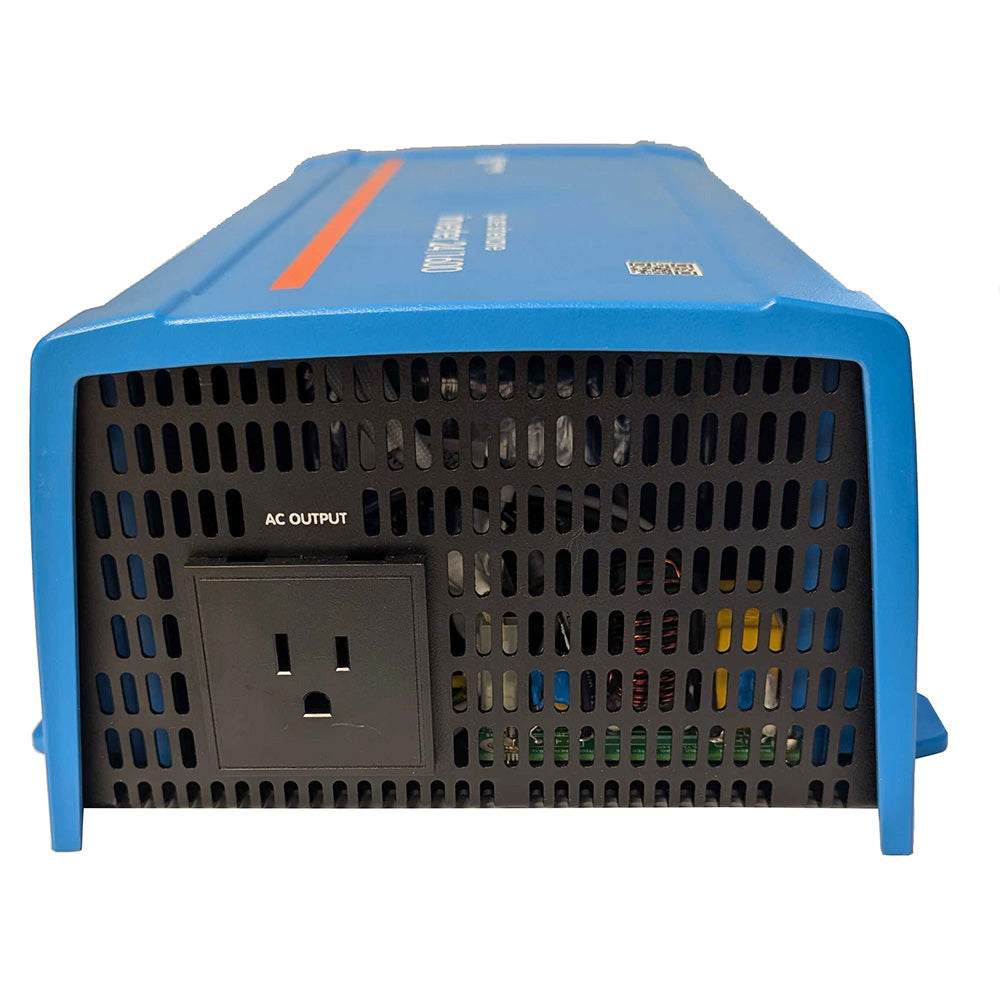

- AC Connection Type: Outlet

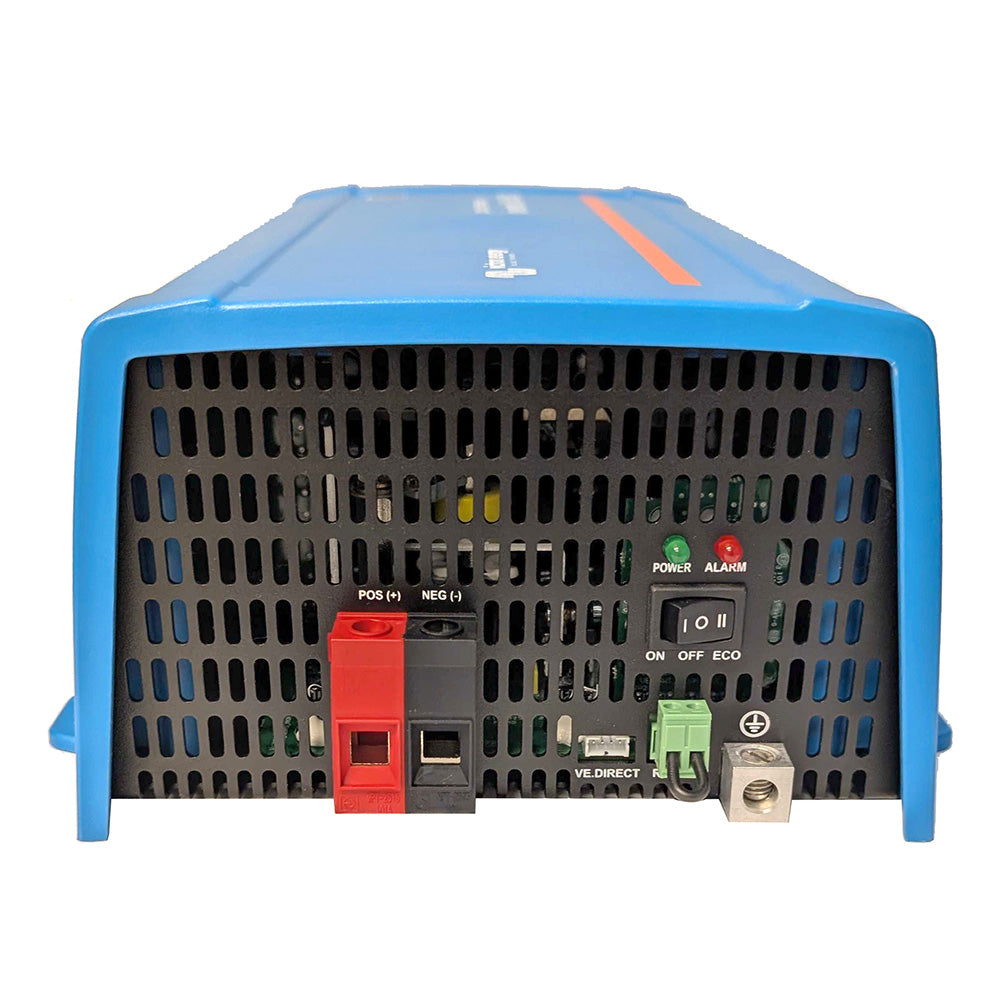

- DC Connection Type: Hardwire
- GFCI: Optional
- Inverter Cont. Output Wattage: 1200W
- Inverter Input Voltage: 24VDC
- Inverter Output Voltage: 120VAC
- Inverter Surge Rating: 2200W
- Outlet Qty: 1 NEMA 5-15R
- Waveform: True Sine Wave
- Box Dimensions: 8"H x 12"W x 17"L WT: 19 lbs
- UPC: 8719076071945
Quick Guide (pdf)Owner's Manual (pdf)Brochure (pdf)
