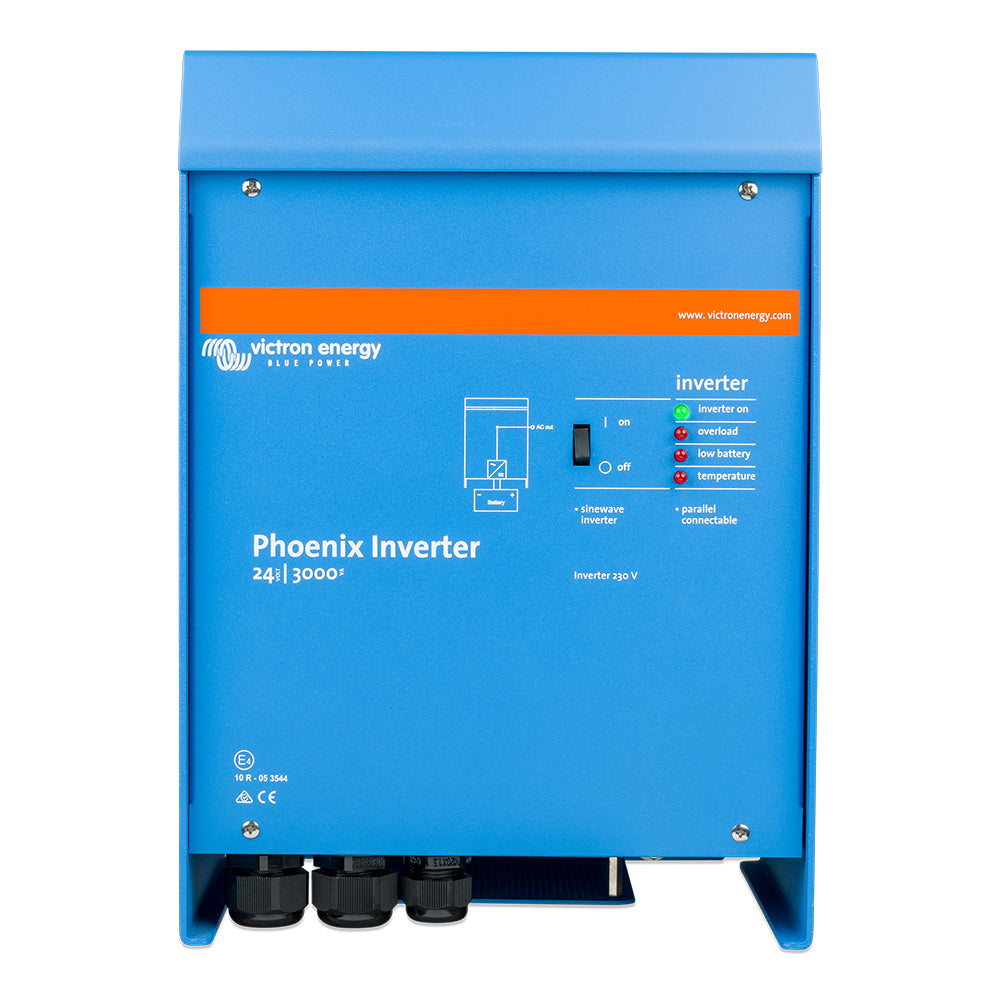

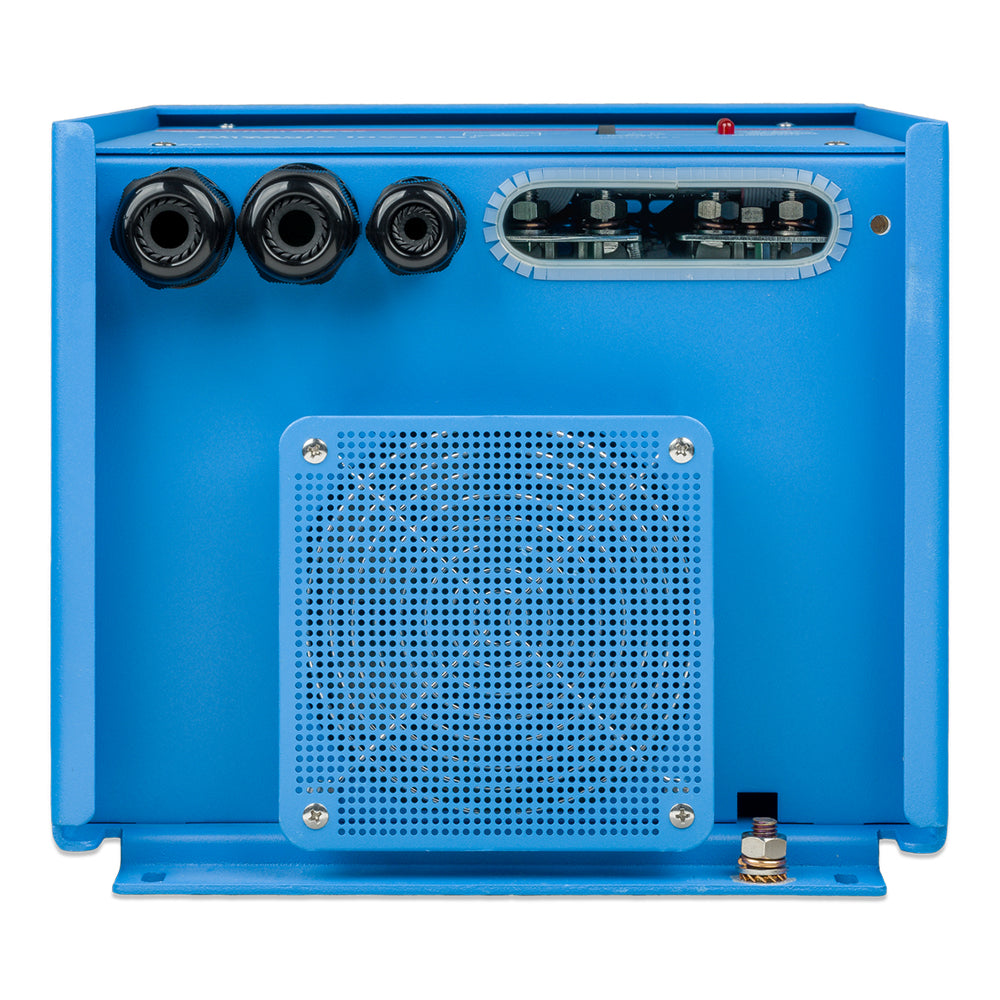

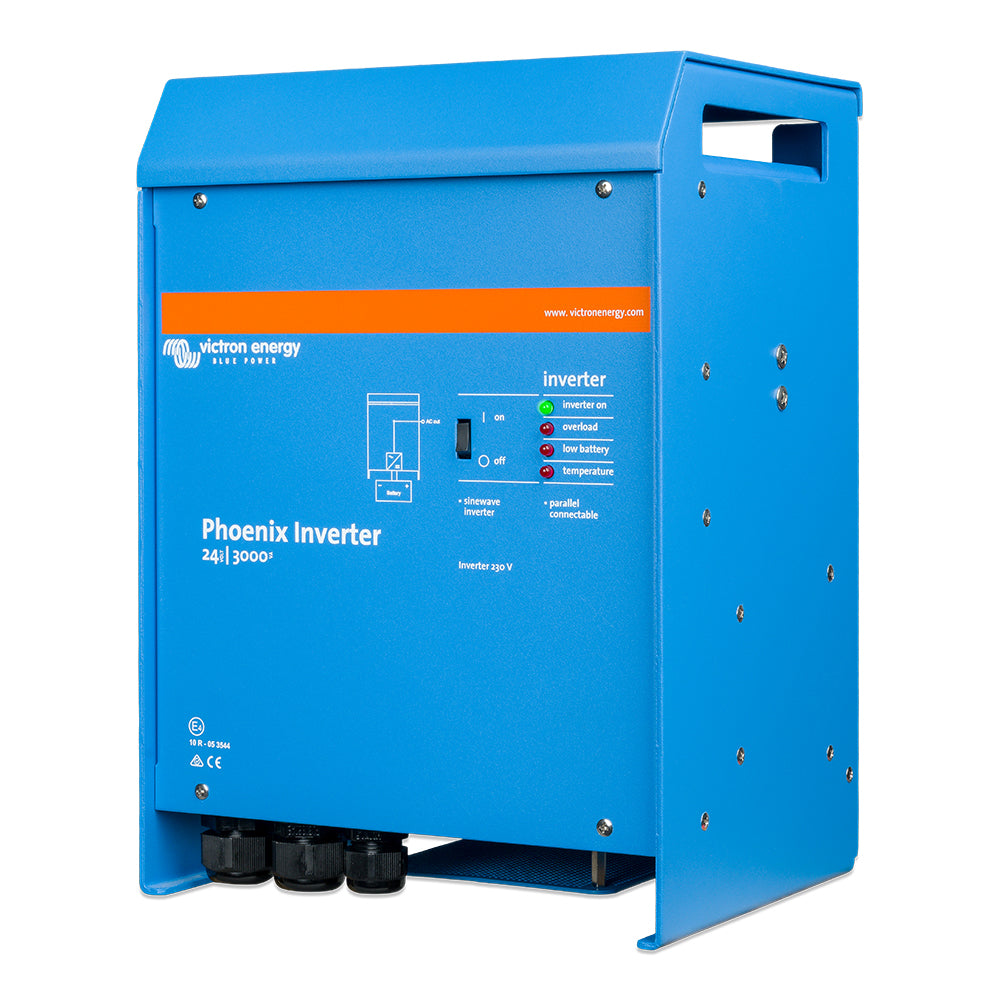

Phoenix Inverter 24 VDC - 3000W - 120 VAC - 60Hz - VE. Bus
Pure sine wave output, high peak power, and high efficiency. Combined high-frequency and line-frequency technologies ensure the best of both worlds.
SinusMax - Superior Engineering
Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromising on performance. Employing hybrid HF technology, the result is a top-quality product with compact dimensions, light in weight, and capable of supplying power, problem-free, to any load.
Parallel & 3-phase Operation Capability
Up to 6 Phoenix Inverters can operate in parallel to achieve higher power output. Six 24 V 5000 VA units, for example, will provide 24 kW / 30 kVA output power. Operation in a 3-phase configuration is also possible.
Warranty Info
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Please contact your dealer for any returns, repairs or support issues related to this product. Specifications:
- Waveform: Pure Sine Wave
- Outlet Qty: None
- Inverter Surge Rating: 6000w
- Inverter Output Voltage: 120v
- Inverter Input Voltage: 19-33v
- Inverter Cont. Output Wattage: 3000w
- GFCI: No
- DC Connection Type: Hardwire
- AC Connection Type: Hardwire
- Box Dimensions: 13"H x 13"W x 18"L WT: 47 lbs
- UPC: 8719076023739
Quick Guide (pdf)Brochure (pdf)
