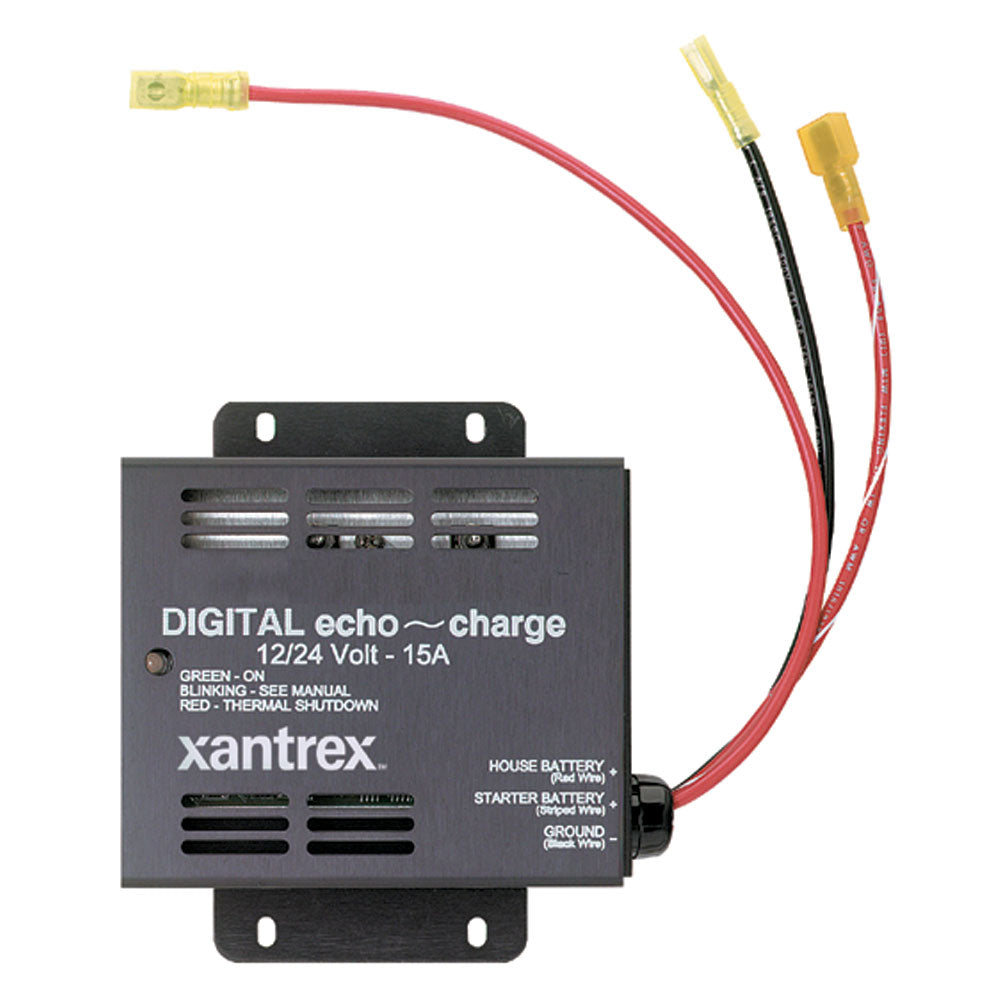

Xantrex Heart Echo Charge Charging Panel [82-0123-01]

$222.02
$0.00

(120)

Shipment.png__PID:1566375f-ddd7-4ae7-946e-2503b97fe25e

Convenient Dual Battery Bank Charging

Xantrex digital echocharge (part#82-0123-01) is designed to charge auxiliary or starting batteries from an inverter/charger or other charging source with limited voltage drop. The Xantrex echocharge detects when the house battery bank is being charged and directs a portion of the charge current to auxiliary or starting batteries. The maximum charger current offered by echocharge is limited to 15 amps.

Product Features

  • 15 A maximum charge current
  • Automatically adjusts for 12 or 24 volt battery banks (both battery banks must be the same DC voltage and battery type)
  • Automatically switches on/off without affecting the in-house battery bank or over-charging
  • Utilizes excess current from the primary charging source
  • Built-in thermal and over-current circuits
  • Reverse polarity protection
  • Easy three wire installation

WarningWARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

  • Charger Output - Amps: 15a
  • Charging Banks: 1
  • Portable: No
  • Charger Input - Voltage: 120v
  • Charger Output Voltage: 12/24v
  • Box Dimensions: 3"H x 7"W x 10"L WT: 1.2 lbs
  • UPC: 647912105722

Quick Guide (pdf)
Owner's Manual (pdf)
